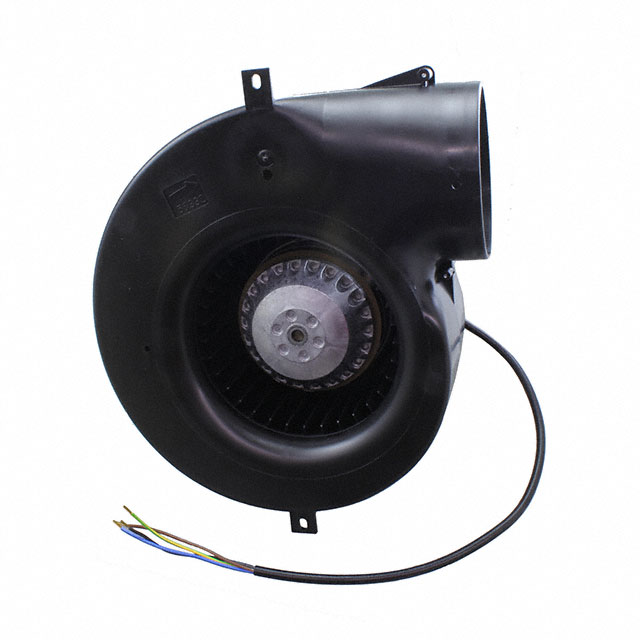

G2E140-NS38-01 - G2E140 Series

G2E140-NS38-01

Active
ebm-papst Inc.

FAN BLWR CENT 237X100MM 230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENDatasheet
G2E140-NS38-01 - G2E140 Series

G2E140-NS38-01

Active
ebm-papst Inc.

FAN BLWR CENT 237X100MM 230VAC

Deep-Dive with AI

DocumentsProduct Change Notice ENDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationG2E140-NS38-01
Approval AgencyCE, CCC, GOST
Bearing TypeBall
Fan TypeBlower, Centrifugal
FeaturesCapacitor, Thermal Overload Protection (TOP)
Ingress ProtectionIP44
Material - BladePolypropylene (PP)
Material - FramePlastic
Operating Temperature35 °C
Power (Watts)115 W
RPM1850 RPM
Size / DimensionRectangular/Rounded
Size / Dimension [x]237 mm
Size / Dimension [z]277 mm
Static Pressure49.9 Pa
Static Pressure0.2 in H2O
Termination4 Wire Leads
Voltage - Rated230 VAC
Weight1.6 kg
Weight3.5 lbs
Width [y]100 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 250.49
10$ 201.54
25$ 197.29
NewarkEach 10$ 254.62
25$ 245.69
50$ 232.29

Description

General part information

G2E140 Series

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 237mm L x 277mm H Ball 4 Wire Leads

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet

Datasheet

Datasheet
