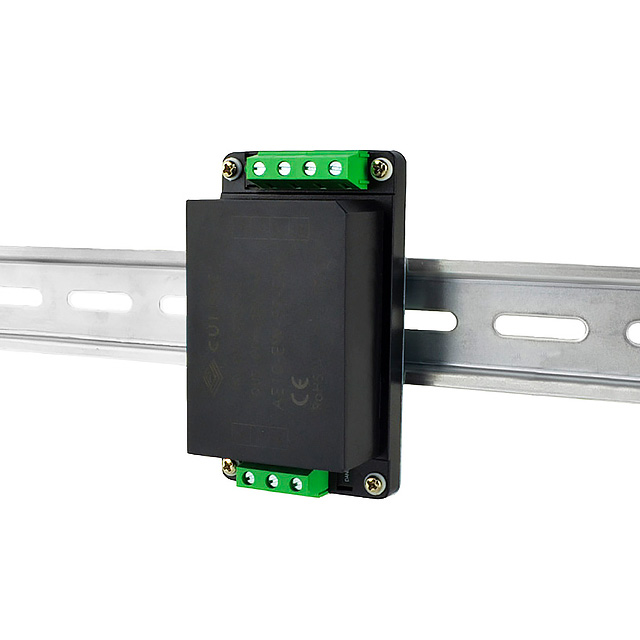

AE10-EW-S9-DIN

CUI Inc.

DC/DC DIN RAIL SUPPLY 9V 10W

Search across all available documentation for this part.

CUI Inc.

DC/DC DIN RAIL SUPPLY 9V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Approval Agency	DC Voltage - Input (Max) [Max]	Power (Watts)	Current - Output (Max) [Max]	Input Type	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Standard Number	Voltage - Input (Max) [Max]	Type	Mounting Type	Applications	Voltage - Input (Min) [Min]	Features	Package / Case
CUI Inc. AE10-EW-S9-DIN	9 V	CE	1000 V	10 W	1.11 A	DC	4000 V	100 V	76 %	36.6 mm	1.44 "	54 mm	3.78 "	2.13 in	96.1 mm	1
CUI Inc. AE10-EW-S9	9 V	EN		10 W	1.11 A		4000 V		76 %	23.5 mm	0.93 in	48 mm	2.76 in	1.89 in	70 mm	1	55024 55032	1000 V	Isolated Module	Through Hole	ITE (Commercial)	100 VDC	OCP OVP SCP	5-DIP Module
CUI Inc. AE10-EW-S5-T	5 V	CE		10 W	2 A		4000 V		72 %	32 mm	1.26 in	54 mm	3.78 "	2.13 in	96.1 mm	1		1000 V	Enclosed	Chassis Mount		100 VDC
CUI Inc. AE10-EW-S5	5 V	EN		10 W	2 A		4000 V		72 %	23.5 mm	0.93 in	48 mm	2.76 in	1.89 in	70 mm	1	55024 55032	1000 V	Isolated Module	Through Hole	ITE (Commercial)	100 VDC	OCP OVP SCP	5-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	12	$ 66.24

General part information

DC/DC DIN RAIL SUPPLY 9V 10W
