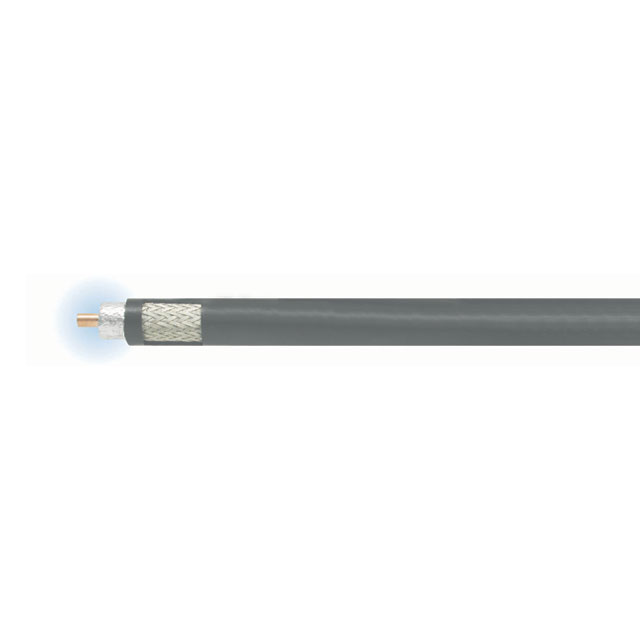

LMR-900-DB

Unknown

Amphenol Times Microwave Systems

CABLE LMR-900 BLACK PE 10'

Search across all available documentation for this part.

Unknown

Amphenol Times Microwave Systems

CABLE LMR-900 BLACK PE 10'

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-900-DB

Cable Type	Coaxial
Conductor Material	Copper, Bare
Dielectric Diameter [diameter]	17.27 mm
Dielectric Diameter [diameter]	0.68 in
Dielectric Material	Foam Polyethylene (FPE)
Features	Direct Burial, Watertight
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	22.1 mm
Jacket (Insulation) Diameter [diameter]	0.87 "
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	15.24 m
Length	50 ft
Length [x]	3.05 m
Length [x]	10 ft
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	87

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Shield Material	Jacket Color	Cable Type	Impedance	Conductor Material	Jacket (Insulation) Material	VoP, Velocity of Propagation	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Length	Length	Features	Conductor Strand
Amphenol Times Microwave Systems LMR-900-LLPX	17.27 mm	0.68 in	125 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Aluminum Copper Tinned	Red	Coaxial - Plenum	50 Ohms	Copper Bare	Fluoropolymer Plenum	76	Braid	20.37 mm	0.802 in
Amphenol Times Microwave Systems LMR-900-DB	17.27 mm	0.68 in	85 °C	-40 °C	Foam Polyethylene (FPE)	Aluminum Copper Tinned	Black	Coaxial	50 Ohms	Copper Bare	Polyethylene (PE)	87	Braid	22.1 mm	0.87 "	3.05 m	10 ft	15.24 m	50 ft	Direct Burial Watertight
Amphenol Times Microwave Systems LMR-900-FR	17.27 mm	0.68 in	85 °C	-40 °C	Foam Polyethylene (FPE)	Aluminum Copper Tinned	Black	Coaxial - Riser	50 Ohms	Copper Bare	Polyethylene (PE) Riser	87	Braid	22.1 mm	0.87 "	30.48 m	100 ft	15.24 m 76.2 m	50 ft 3000 "	Fire Retardant
Amphenol Times Microwave Systems LMR-900-RR-DB			85 °C	-40 °C	Foam Polyethylene (FPE)	Aluminum	Black	Coaxial	50 Ohms	Copper Bare	Polyethylene (PE)	87	Braid	22.1 mm	0.87 "					Direct Burial Watertight	Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 10.0' (3.05m) 50 Ohms
