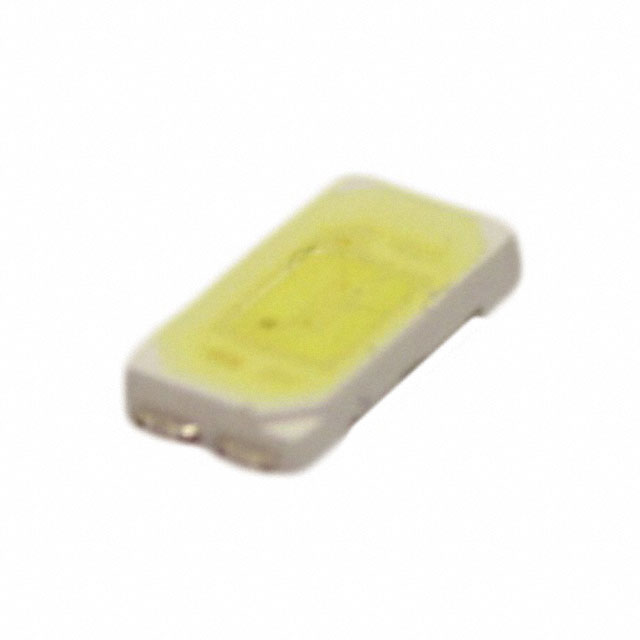

QBHP687-IWH-NW
ObsoleteQT Brightek (QTB)
LED QBHP687 NEUT WHT 4000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBHP687-IWH-NW
ObsoleteQT Brightek (QTB)
LED QBHP687 NEUT WHT 4000K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBHP687-IWH-NW |
|---|---|
| CCT (K) | 4000 K |
| CCT (K) [Max] | 4240 K |
| CCT (K) [Min] | 3640 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 180 mA |
| Current - Test | 150 mA |
| Height - Seated (Max) [Max] | 0.038 in |
| Height - Seated (Max) [Max] | 0.97 mm |
| Lumens/Watt @ Current - Test | 101 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Size / Dimension [x] | 5.3 mm |
| Size / Dimension [x] | 0.209 " |
| Size / Dimension [y] | 0.118 in |
| Size / Dimension [y] | 3 mm |
| Supplier Device Package | SMD |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
QBHP687 Series
LED Lighting QBHP687 White, Neutral 4000K (3640K ~ 4240K) 3.3V 150mA 4-SMD, Flat Lead Exposed Pad
