LMR-300

Unknown

Amphenol Times Microwave Systems

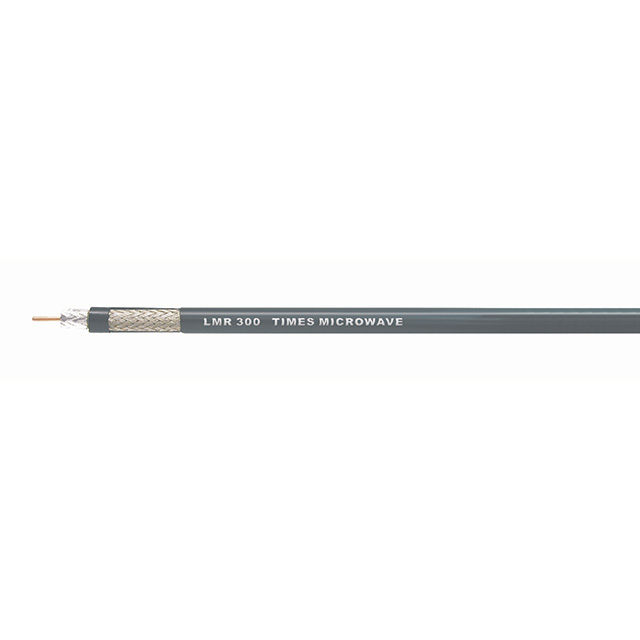

LMR-300 STANDARD CABLE, BLACK PE

Deep-Dive with AI

Search across all available documentation for this part.

LMR-300

Unknown

Amphenol Times Microwave Systems

LMR-300 STANDARD CABLE, BLACK PE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-300

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	4.83 mm
Dielectric Diameter [diameter]	0.19 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	15.24 m
Length	50 ft
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	82

LMR-300 Series

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Jacket Color	Shield Material	Cable Type	Impedance	VoP, Velocity of Propagation	Conductor Strand	Conductor Material	Dielectric Material	Length [x]	Length [x]	Length	Length
Amphenol Times Microwave Systems LMR-300-FR	4.83 mm	0.19 in	85 °C	-40 °C	Braid	7.62 mm	0.3 in	Polyethylene (PE) Riser	Fire Retardant	Black	Aluminum Copper Tinned	Coaxial - Riser	50 Ohms	82	Solid	Copper Bare	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-ULTRAFLEX	4.83 mm	0.19 in	85 °C	-40 °C	Braid	7.62 mm	0.3 in	Thermoplastic Elastomer (TPE)		Black	Aluminum Copper Tinned	Coaxial	50 Ohms	85		Copper Bare	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-LLPX	4.83 mm	0.19 in	125 °C	-40 °C	Braid	6.6 mm	0.26 in	Fluoropolymer Plenum		Red	Aluminum Copper Tinned	Coaxial - Plenum	50 Ohms	76	Solid	Copper Bare	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems LMR-300	4.83 mm	0.19 in	85 °C	-40 °C	Braid Foil	7.62 mm	0.3 in	Polyethylene (PE)		Black	Aluminum Copper Tinned	Coaxial	50 Ohms	82	Solid	Copper Bare	Foam Polyethylene (FPE)	3.05 m 30.48 m	10 ft 100 ft	15.24 m	50 ft
Amphenol Times Microwave Systems LMR-300-PVC-W	4.83 mm	0.19 in	85 °C	-40 °C	Braid	7.62 mm	0.3 in	Poly-Vinyl Chloride (PVC)			Aluminum Copper Tinned	Coaxial	50 Ohms	82	Solid	Copper Bare	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-PVC	4.83 mm	0.19 in	85 °C	-40 °C	Braid	7.62 mm	0.3 in	Poly-Vinyl Chloride (PVC)		Black	Aluminum Copper Tinned	Coaxial	50 Ohms	82	Solid	Copper Bare	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-FR-PVC	4.83 mm	0.19 in	85 °C	-40 °C	Braid	7.62 mm	0.3 in	Poly-Vinyl Chloride (PVC) Riser	Fire Retardant	Black	Aluminum Copper Tinned	Coaxial - Riser	50 Ohms	82	Solid	Copper Bare	Foam Polyethylene (FPE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 134.46
		1	$ 68.81
		1	$ 13.87
		3	$ 124.40

Description

General part information

LMR-300 Series

Coaxial Cable 50.0' (15.24m) 50 Ohms

Documents

Technical documentation and resources

No documents available
