Q-0A00M000H012i

Active

Amphenol Custom Cable

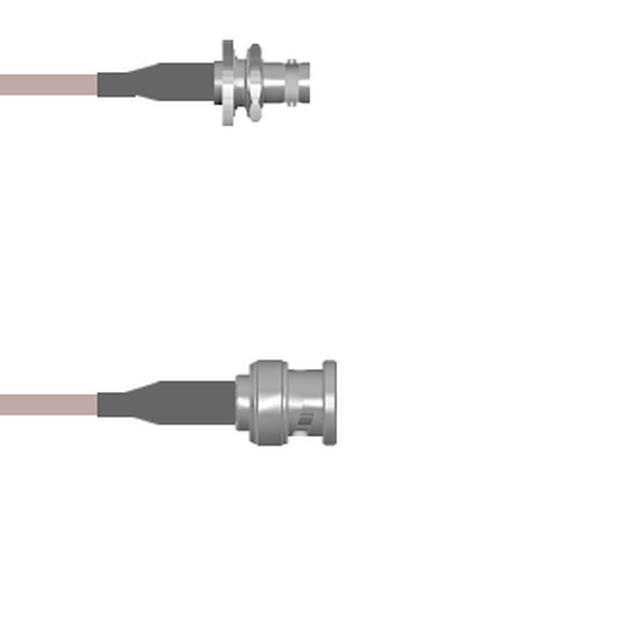

CBL ASSY BNC JACK TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0A00M000H012i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0A00M000H012i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0A00M0 Series

Part	1st Connector Mounting Feature	Frequency - Max [Max]	Color	1st Contact Gender	Features	Length	Length	Style	Cable Type	2nd Connector	Overall Impedance	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0A00M000H0.5M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	50 cm	19.69 "	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male
Amphenol Custom Cable Q-0A00M000H1.5M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	1.5 m	59.1 in	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male	4.9 ft
Amphenol Custom Cable Q-0A00M000H.25M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded			BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male		9.843 "	250 mm
Amphenol Custom Cable Q-0A00M000H012i	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	304.8 mm	12 "	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male
Amphenol Custom Cable Q-0A00M000H.75M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	750 mm	29.53 "	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male
Amphenol Custom Cable Q-0A00M000H003M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	3 m	118.1 in	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male	9.8 '
Amphenol Custom Cable Q-0A00M000H018i	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded			BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male			457.2 mm	457.2 mm
Amphenol Custom Cable Q-0A00M000H2.5M	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	2.5 m	98.4 in	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male	8.2 '
Amphenol Custom Cable Q-0A00M000H006i	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	152.4 mm	6 in	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male
Amphenol Custom Cable Q-0A00M000H108i	Bulkhead - Front Side Nut	4 GHz	Copper	Female	Shielded	2.7 m	108 in	BNC to BNC	RG-142	BNC Plug	50 Ohms	BNC Jack	Free Hanging (In-Line)	Panel Mount	Male	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.55
		25	$ 64.26
		50	$ 62.97
		100	$ 61.68
		250	$ 60.39

Description

General part information

Q-0A00M0 Series

Cable Assembly Coaxial BNC to BNC RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
