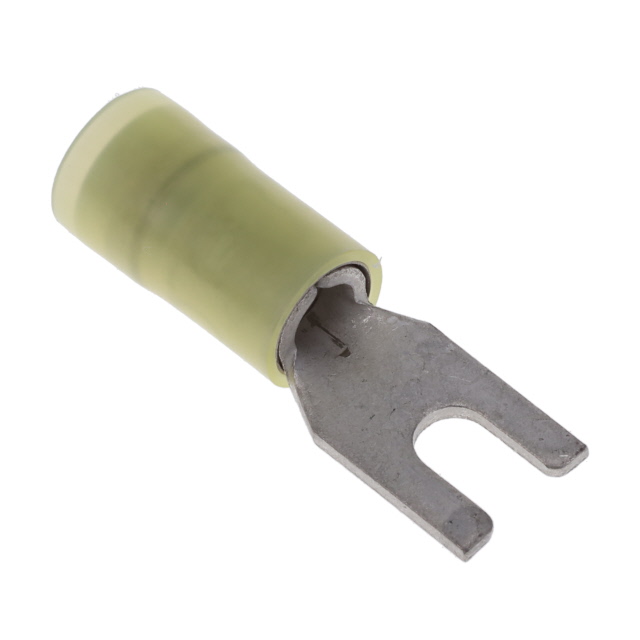

0191980039

Active

Molex

TERMINALS SPADE AVIKRIMP (C-8105-06)

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0191980039

Active

Molex

TERMINALS SPADE AVIKRIMP (C-8105-06)

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191980039

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	5.72 mm
Insulation Diameter [diameter]	0.225 "
Length - Overall [x]	1.09 in
Length - Overall [x]	27.69 mm
Length - Ring Center to Termination [x]	0.305 "
Length - Ring Center to Termination [x]	7.75 mm
Length - Termination	0.56 "
Length - Termination	14.22 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019198 Series

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Termination	Stud/Tab Size	Material - Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall	Contact Finish	Color	Insulation	Terminal Type	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Length - Termination	Length - Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Ring Center to Termination	Length - Ring Center to Termination
Molex 0191980004	3.56 mm	0.14 in	Copper	0.173 in	4.39 mm	Crimp	8 Stud	Nylon Polyamide (PA)	7.7 mm	0.303 in	8.03 mm	0.316 in	23.24 mm	0.915 in	Electro-Tin	Red	Insulated	Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG
Molex 0191980056	5.72 mm	0.225 "	Copper	0.265 in	6.73 mm	Crimp		Nylon Polyamide (PA)	9.98 mm	0.393 in	13.54 mm	0.533 in			Electro-Tin	Yellow	Insulated	Standard	Free Hanging (In-Line)	12 AWG	10 AWG	32.28 mm	1.271 in	0.25 Stud	0.56 "	14.22 mm
Molex 0191980039	5.72 mm	0.225 "	Copper	0.146 in	3.71 mm	Crimp		Nylon Polyamide (PA)	7.75 mm	0.305 "	8.13 mm	0.32 in			Electro-Tin	Yellow	Insulated	Standard	Free Hanging (In-Line)	12 AWG	10 AWG	27.69 mm	1.09 in	6 Stud	0.56 "	14.22 mm
Molex 0191980020			Copper	0.173 in	4.39 mm	Crimp	8 Stud	Nylon Polyamide (PA)	5.36 mm	0.211 in			20.42 mm		Electro-Tin	Blue	Insulated	Standard	Free Hanging (In-Line)				0.804 in		0.415 in	10.54 mm	0.295 in	7.49 mm
Molex 0191980012			Copper	0.146 in	3.71 mm	Crimp		Nylon Polyamide (PA)							Electro-Tin	Blue	Insulated	Standard	Free Hanging (In-Line)			20.45 mm	0.805 in	6 Stud	0.415 in	10.54 mm	0.245 in	6.22 mm	0.209 in	5.31 mm
Molex 0191980025			Copper	0.198 in	5.03 mm	Crimp		Nylon Polyamide (PA)	6.83 mm	0.269 in					Electro-Tin	Blue	Insulated	Standard	Free Hanging (In-Line)			23.55 mm	0.927 in	10 Stud	0.415 in	10.54 mm	0.388 in	9.86 mm
Molex 0191980084	5.72 mm	0.225 "	Copper			Crimp		Nylon Polyamide (PA)	7.65 mm	0.301 in					Electro-Tin	Yellow	Insulated	Standard	Free Hanging (In-Line)	12 AWG	10 AWG	28.4 mm	1.118 in	10 Stud	0.56 "	14.22 mm	0.375 in	9.53 mm
Molex 0191980026			Copper	0.198 in	5.03 mm	Crimp		Nylon Polyamide (PA)	6.83 mm	0.269 in	9.19 mm	0.362 "			Electro-Tin	Blue	Insulated	Standard	Free Hanging (In-Line)			23.55 mm	0.927 in	10 Stud	0.415 in	10.54 mm
Molex 0191980070	3.56 mm	0.14 in	Copper	0.146 in	3.71 mm	Crimp		Nylon Polyamide (PA)	7.7 mm	0.303 in	8.03 mm	0.316 in	23.24 mm	0.915 in	Electro-Tin	Red	Insulated	Standard	Free Hanging (In-Line)	22 AWG	17.5 AWG			6 Stud
Molex 0191980047	5.72 mm	0.225 "	Copper	0.173 in	4.39 mm	Crimp	8 Stud	Nylon Polyamide (PA)	7.65 mm	0.301 in					Electro-Tin	Yellow	Insulated	Standard	Free Hanging (In-Line)	12 AWG	10 AWG	28.4 mm	1.118 in		0.56 "	14.22 mm	0.375 in	9.53 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.70
		10	$ 0.59
		100	$ 0.46
		1000	$ 0.36
		2500	$ 0.33
Sager	N/A	2000	$ 0.32
		6000	$ 0.27
		10000	$ 0.26
		28000	$ 0.23

Description

General part information

019198 Series

Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
