Technical Specifications
Parameters and characteristics for this part
| Specification | DCE0133V2PBSRC |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 33 A |
| Efficiency | 95.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Eighth Brick |
| Power (Watts) | 396 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 0.52 " |
| Size / Dimension [z] | 13.2 mm |
| Supplier Device Package | Eighth Brick |
| Type | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 75.39 | |
Description
General part information
DCE0133 Series

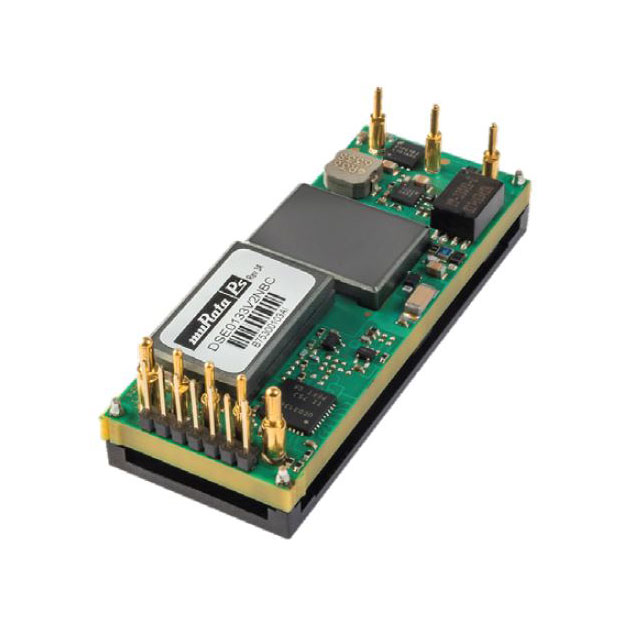

Isolated Module, Digital DC DC Converter 1 Output 12V 33A 36V - 75V Input
