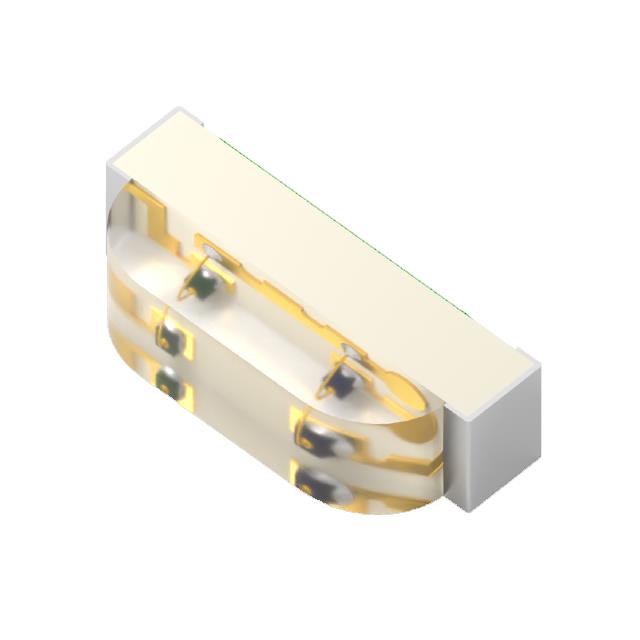

APFA2507QBDSEEZGKC

Active

Kingbright

LED RGB CLEAR 4SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APFA2507QBDSEEZGKC

Active

Kingbright

LED RGB CLEAR 4SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APFA2507QBDSEEZGKC

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	0.85 mm
Lens Color	Colorless
Lens Size [x]	2.1 mm
Lens Size [y]	0.7 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	110 mcd
Millicandela Rating [custom]	400 mcd
Millicandela Rating [custom]	65 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	1 mm
Supplier Device Package	4-SMD
Viewing Angle [custom]	130 °
Viewing Angle [custom]	140 °
Viewing Angle [custom]	110 °
Voltage - Forward (Vf) (Typ)	3.3 V, 3.3 V, 2 V
Wavelength - Dominant	465 nm, 621 nm, 525 nm
Wavelength - Peak [custom]	630 nm
Wavelength - Peak [custom]	460 nm
Wavelength - Peak [custom]	515 nm

APFA2507 Series

Part	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Current - Test	Mounting Type	Package / Case	Wavelength - Dominant	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Viewing Angle	Lens Style	Lens Color	Configuration	Supplier Device Package	Lens Transparency	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APFA2507LSURKSYKZGKC	2.1 mm	0.7 mm	0.85 mm	2 mA 2 mA 2 mA	Surface Mount Right Angle	4-SMD No Lead	525 nm 590 nm 630 nm	Green Red Yellow	1.85 V	1.75 V	2.65 V	1 mm	2.5 mm	645 nm	590 nm	515 nm	115° Yellow 125° Green 130° Red	Rectangle with Domed Top	Colorless	Common Anode	4-SMD	Clear	15 mcd 30 mcd 60 mcd
Kingbright APFA2507QBDSEEZGKC	2.1 mm	0.7 mm	0.85 mm		Surface Mount Right Angle	4-SMD No Lead	465 nm 525 nm 621 nm	Blue Green Red				1 mm	2.5 mm	630 nm		515 nm		Rectangle with Domed Top	Colorless	Common Anode	4-SMD	Clear		20 mA	20 mA	20 mA	460 nm	2 V 3.3 V 3.3 V	110 mcd	400 mcd	65 mcd	130 °	140 °	110 °
Kingbright APFA2507LQBDSEEZGKC	2.1 mm	0.7 mm	0.85 mm		Surface Mount Right Angle	4-SMD No Lead	465 nm 525 nm 621 nm	Blue Green Red		1.8 V	2.7 V	1 mm	2.5 mm	630 nm		515 nm		Rectangle with Domed Top	Colorless	Common Anode	4-SMD	Clear		2 mA	2 mA	2 mA	460 nm		10 mcd	60 mcd	10 md	130 °	140 °	110 °	2.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.69
		100	$ 0.45
		1000	$ 0.35
	Digi-Reel®	1	$ 1.05
		10	$ 0.69
		100	$ 0.45
		1000	$ 0.35
	Tape & Reel (TR)	3000	$ 0.33
		6000	$ 0.32
		15000	$ 0.31
		30000	$ 0.31

Description

General part information

APFA2507 Series

Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
