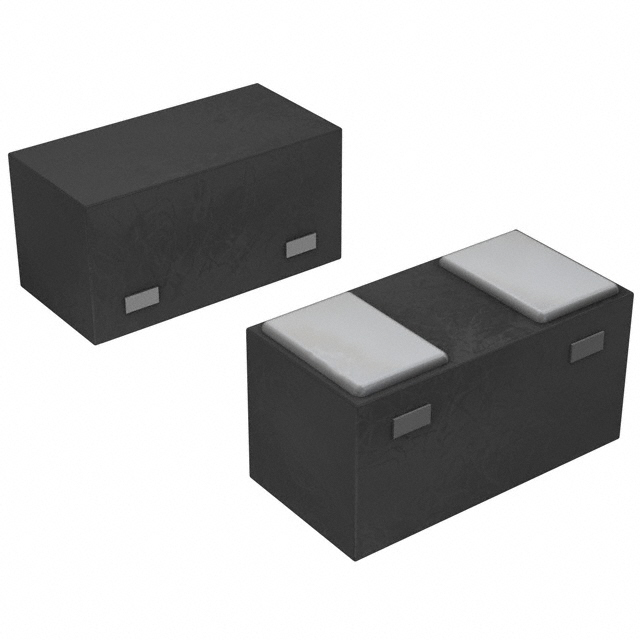

SDZT15R8.2
ActiveRohm Semiconductor
DIODE ZENER 8.2V 100MW SMD0603
Deep-Dive with AI
Search across all available documentation for this part.
SDZT15R8.2
ActiveRohm Semiconductor
DIODE ZENER 8.2V 100MW SMD0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDZT15R8.2 |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 2-SMD, No Lead |
| Power - Max [Max] | 100 mW |
| Supplier Device Package | SMD0603 |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.31 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
Description
General part information
SDZT15 Series
Zener Diode 8.2 V 100 mW ±5% Surface Mount SMD0603
