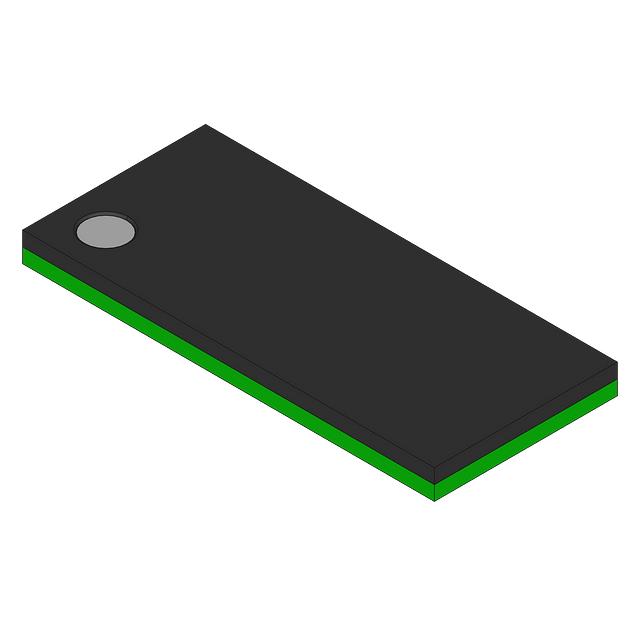

SN74AVCH24T245GRGR

Obsolete

Texas Instruments

IC TRANSLATION TXRX 3.6V 83BGA

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC TRANSLATION TXRX 3.6V 83BGA

Technical Specifications

Parameters and characteristics for this part

Specification	SN74AVCH24T245GRGR

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Logic Type	Translation Transceiver
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	83-VFBGA
Supplier Device Package	83-BGA Microstar Junior
Supplier Device Package [x]	10
Supplier Device Package [y]	4.5
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.2 V

Part	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Mounting Type	Output Type	Number of Bits per Element	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Elements	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Texas Instruments SN74AVCH24T245GRGR	4.5	10	83-BGA Microstar Junior	Surface Mount	3-State	4	83-VFBGA	85 °C	-40 °C	6	1.2 V	3.6 V	Translation Transceiver	12 mA	12 mA
Texas Instruments SN74AVCH24T245ZRGR			83-BGA MICROSTAR JUNIOR (10x4.5)	Surface Mount	3-State	4	83-VFBGA	85 °C	-40 °C	6	1.2 V	3.6 V	Translation Transceiver	12 mA	12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Translation Transceiver 6 Element 4 Bit per Element 3-State Output 83-BGA Microstar Junior (10x4.5)
