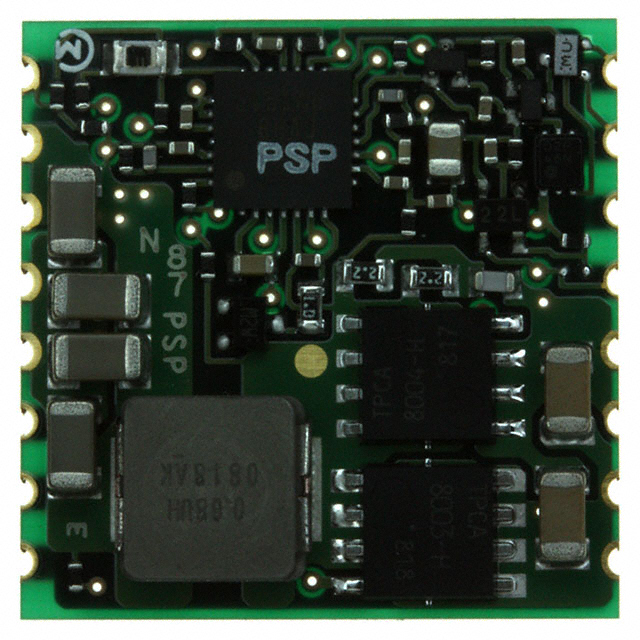

MPDRX301S
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 1.6-3.63V 48W
Deep-Dive with AI
Search across all available documentation for this part.
MPDRX301S
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 1.6-3.63V 48W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDRX301S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 13 A |
| Efficiency | 90 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power (Watts) | 48 W |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [x] | 21.9 mm |
| Size / Dimension [y] | 0.85 " |
| Size / Dimension [y] | 21.7 mm |
| Size / Dimension [z] | 0.17 in |
| Size / Dimension [z] | 4.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 5.6 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPDRX Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.6 ~ 3.63V 13A 5.6V - 14V Input
