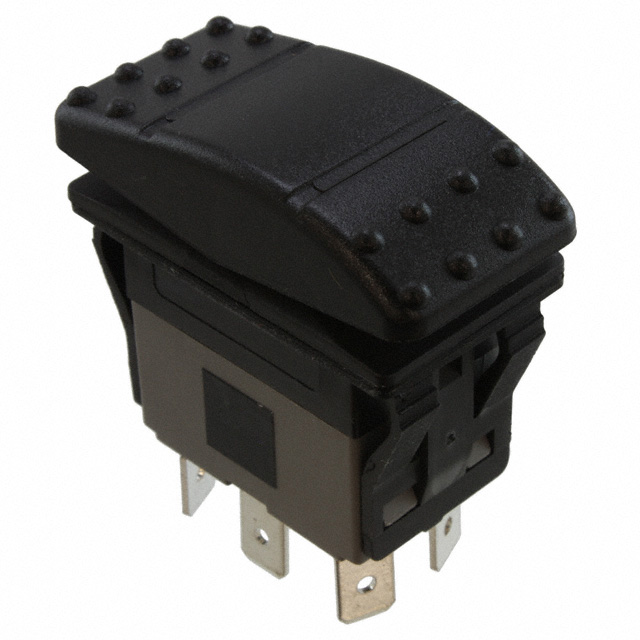

GRB234A2NABA1
ActiveCW Industries
SWITCH ROCKER DPDT 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
GRB234A2NABA1
ActiveCW Industries
SWITCH ROCKER DPDT 25A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB234A2NABA1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 25 A |
| Electrical Life | 30000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.59 | |
| 10 | $ 6.83 | |||
| 25 | $ 6.55 | |||
| 50 | $ 6.30 | |||
Description
General part information
GRB234A Series
Rocker Switch DPDT 25A (DC) Panel Mount, Snap-In
