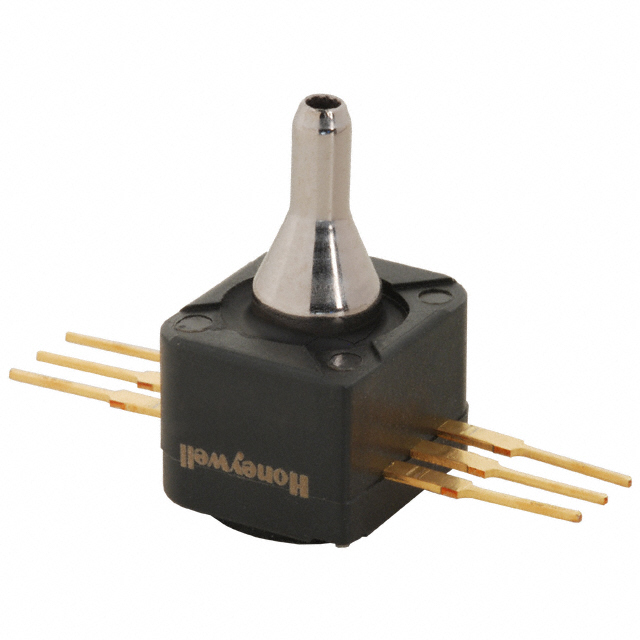

40PC001B1A

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.97PSIC 0.18" 6.5V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.97PSIC 0.18" 6.5V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Package / Case	Port Style	Pressure Type	Accuracy	Termination Style	Output [Max]	Output [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Features	Output Type
Honeywell Sensing and Productivity Solutions 40PC001B1A	0.97 PSI	6.69 kPa	6-DIP Module	Barbless	Compound	0.8 %	PC Pin	6.5 V	2.5 V	4.75 V	5.25 V	125 °C	-45 °C	Through Hole	Board Mount	Amplified Output	Analog Voltage
Honeywell Sensing and Productivity Solutions 40PC001B2A	0.97 PSI	6.69 kPa	6-DIP Module	Barbless	Compound	0.8 %	PC Pin	6.5 V	2.5 V	4.75 V	5.25 V	125 °C	-45 °C	Through Hole	Board Mount	Amplified Output	Analog Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor ±0.97PSI (±6.69kPa) Compound Male - 0.18" (4.57mm) Tube 2.5 V ~ 6.5 V 6-DIP Module

Technical documentation and resources

No documents available
