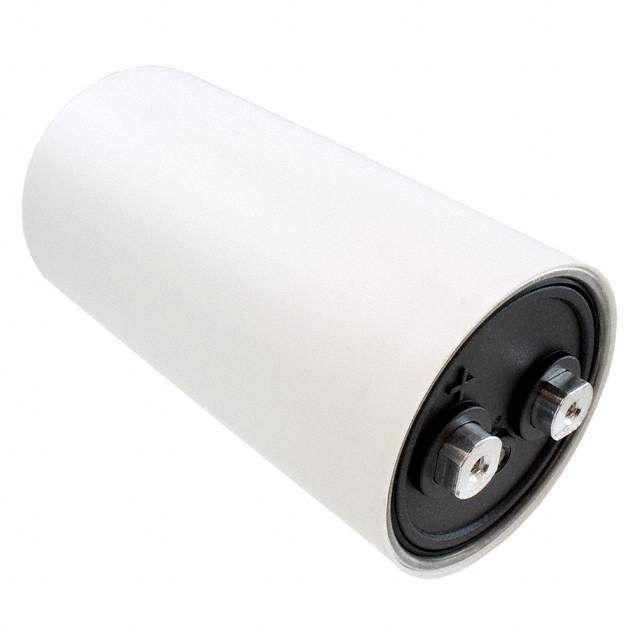

PEH169SV488AMB2

Active

KEMET

CAP ALUM 8800UF 20% 250V SCREW

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 8800UF 20% 250V SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PEH169SV488AMB2

Applications	General Purpose
Capacitance	8800 µF
ESR (Equivalent Series Resistance)	15 mOhm
Height - Seated (Max) [Max]	149.23 mm
Height - Seated (Max) [Max] [z]	5.875 in
Impedance	9 mOhms
Lead Spacing	32 mm
Lead Spacing	1.26 in
Lifetime @ Temp.	24000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	17.3 A
Size / Dimension [diameter]	76.6 mm
Size / Dimension [diameter]	3.016 in
Tolerance	20 %
Voltage - Rated	250 V

Part	Capacitance	Polarization	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Voltage - Rated	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency
KEMET PEH169SV488AMB2	8800 µF	Polar	General Purpose	32 mm	1.26 in	5.875 in	149.23 mm	20 %	Chassis Mount	15 mOhm	250 V	24000 Hrs	76.6 mm	3.016 in	9 mOhms	Radial Can - Screw Terminals	85 °C	-40 °C	17.3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 92.40
Newark	Each	50	$ 93.09
		100	$ 91.01

General part information

8800 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 15mOhm @ 100Hz 24000 Hrs @ 85°C
