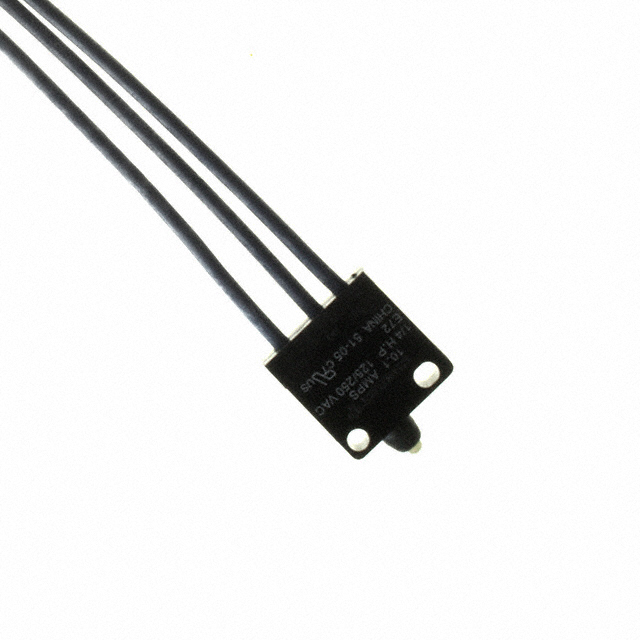

E72-40AT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
E72-40AT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E72-40AT |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 6000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 300 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.035 " |
| Overtravel | 0.9 mm |
| Pretravel | 0.04 in |
| Pretravel | 1 mm |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
E72-40A Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
