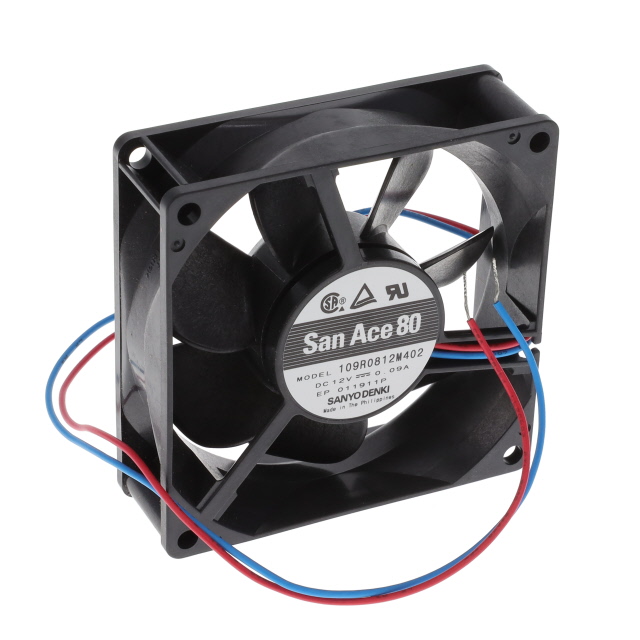

109R0812M402

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing +1

109R0812M402

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109R0812M402

Air Flow	0.82 m³/min
Air Flow	29.3 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	23 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.08 W
RPM	2350 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.243 lb
Weight	110.22 g
Width [y]	25 mm

109R0812 Series

Part	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Current Rating (Amps)	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Termination	Weight	Weight	Voltage - Rated	Air Flow	Air Flow	Bearing Type	Material - Blade	Fan Type	RPM	Width [y]	Material - Frame	Noise	Features	Lifetime @ Temp.
Sanyo Denki America Inc. 109R0812F4021	13.8 VDC	6 VDC	CSA TUV UL	110 mA	1.32 W	0.114 in H2O	28.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC	0.91 mł/min	32.5 CFM	Ball	Plastic	Tubeaxial	2600 RPM	25 mm	Plastic	26 dB
Sanyo Denki America Inc. 109R0812F401	13.8 VDC	6 VDC	CSA TUV UL	110 mA	1.32 W	0.114 in H2O	28.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	3 Wire Leads	0.243 lb	110.22 g	12 VDC	0.91 mł/min	32.5 CFM	Ball	Plastic	Tubeaxial	2600 RPM	25 mm	Plastic	26 dB	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0812F4011	13.8 VDC	6 VDC	CSA TUV UL	110 mA	1.32 W	0.114 in H2O	28.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	3 Wire Leads	0.243 lb	110.22 g	12 VDC	0.91 mł/min	32.5 CFM	Ball	Plastic	Tubeaxial	2600 RPM	25 mm	Plastic	26 dB	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0812G4011	13.2 VDC	10.8 VDC	CSA TUV UL	370 mA	4.44 W	0.323 in H2O	80.4 Pa	-20 °C	60 °C	-20 C	60 °C	80 mm	80 mm	3 Wire Leads	0.243 lb	110.22 g	12 VDC	1.48 mł/min	53 CFM	Ball	Plastic	Tubeaxial	4500 RPM	25 mm	Plastic	40 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 109R0812L4021	13.8 VDC	7 V	CSA TUV UL	60 mA	720 mW	0.059 in H2O	14.7 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC	0.644 m³/min	23 CFM	Ball	Plastic	Tubeaxial	1850 RPM	25 mm	Plastic	20 dB
Sanyo Denki America Inc. 109R0812H4021	13.8 VDC	6 VDC	CSA TUV UL		1.56 W	0.142 in H2O	35.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC	1.02 m³/min	36.4 CFM	Ball	Plastic	Tubeaxial	2900 RPM	25 mm	Plastic	29 dB(A)
Sanyo Denki America Inc. 109R0812H402	13.8 VDC	6 VDC	CSA TUV UL		1.56 W	0.142 in H2O	35.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC			Ball	Plastic	Tubeaxial	2900 RPM	25 mm	Plastic	29 dB(A)
Sanyo Denki America Inc. 109R0812M402	13.8 VDC	6 VDC	CSA TUV UL	0.09 A	1.08 W	0.09 in H2O	22.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC	0.82 m³/min	29.3 CFM	Ball	Plastic	Tubeaxial	2350 RPM	25 mm	Plastic	23 dB(A)
Sanyo Denki America Inc. 109R0812F402	13.8 VDC	6 VDC	CSA TUV UL	110 mA	1.32 W	0.114 in H2O	28.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	2 Wire Leads	0.243 lb	110.22 g	12 VDC	0.91 mł/min	32.5 CFM	Ball	Plastic	Tubeaxial	2600 RPM	25 mm	Plastic	26 dB
Sanyo Denki America Inc. 109R0812S4D011	13.8 VDC	6 VDC	CSA TUV UL	0.18 A	2.16 W	0.193 in H2O	48.1 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	3 Wire Leads	0.243 lb	110.22 g	12 VDC			Ball	Plastic	Tubeaxial	3400 RPM	25 mm	Plastic	34 dB(A)	Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.35
		10	$ 14.66
		40	$ 13.78
		80	$ 13.26
		120	$ 12.21
		280	$ 11.43
		520	$ 11.25

Description

General part information

109R0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 29.3 CFM (0.820mł/min) 2 Wire Leads
