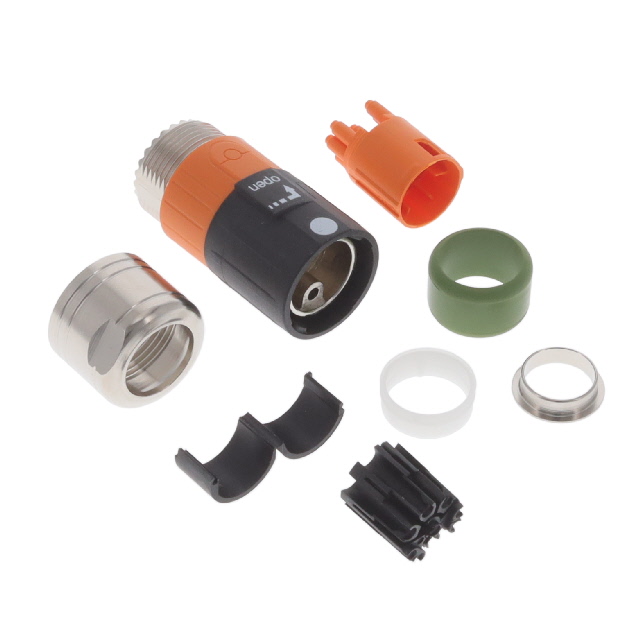

ESA205N00330003000

Active

TE Intercontec

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESA205N00330003000

Active

TE Intercontec

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESA205N00330003000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black, Silver
Includes	1 Nut, 1 EMI Ring, 1 Contact Housing, 1 Clip, 1 Grommet, 1 Shell Housing, 1 Contact Block
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

ESA20 Series

Part	Ingress Protection	Orientation	Shell Material	Mounting Type	Housing Color	Note	Features	Contact Shape	Number of Positions	Material Flammability Rating	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Fastening Type	Type	Connector Type	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
TE Intercontec ESA205N00330003000	IP66/IP67	Keyed	Zinc Die Cast	Free Hanging (In-Line)	Black Silver	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Circular	15	UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Shielded	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	Push-Twist	For Female Sockets	Plug Housing
TE Intercontec ESA202N00340500000	IP66/IP67	Keyed	Zinc Die Cast	Free Hanging (In-Line)	Black Silver	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Circular		UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Shielded	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	Push-Twist	For Female Sockets	Plug Housing	PE	3	5	9
TE Intercontec ESA205N00340003000	IP66/IP67	Keyed	Zinc Die Cast	Free Hanging (In-Line)	Black Silver	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Circular	15	UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Shielded	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	Push-Twist	For Female Sockets	Plug Housing
TE Intercontec ESA202N00330500000	IP66/IP67	Keyed	Zinc Die Cast	Free Hanging (In-Line)	Black Silver	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Circular		UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Shielded	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	Push-Twist	For Female Sockets	Plug Housing	PE	3	5	9
TE Intercontec ESA202N00320500000	IP66/IP67	Keyed	Zinc Die Cast	Free Hanging (In-Line)	Black Silver	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Circular		UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Shielded	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	Push-Twist	For Female Sockets	Plug Housing	PE	3	5	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.43
		10	$ 18.77
		30	$ 17.96
		60	$ 17.38
		120	$ 16.80
		270	$ 15.87
		510	$ 15.41

Description

General part information

ESA20 Series

15 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut

Documents

Technical documentation and resources
