W6882-10PG-528

Active

Conxall/Switchcraft

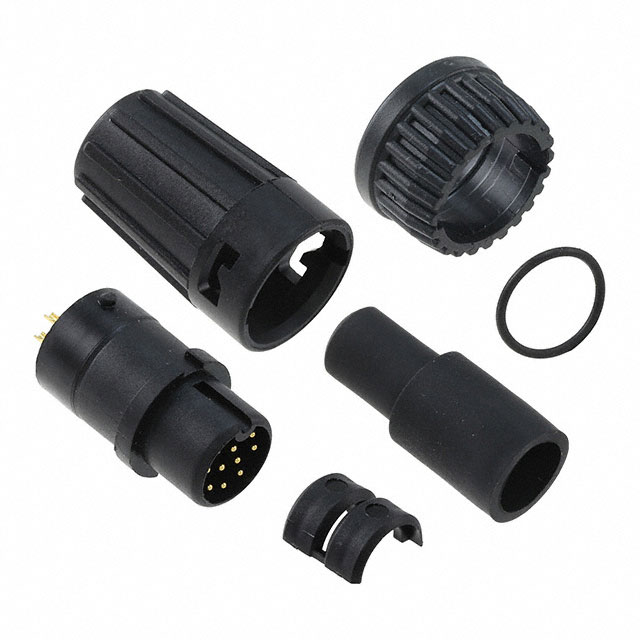

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

W6882-10PG-528

Active

Conxall/Switchcraft

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W6882-10PG-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.6 mm
Cable Opening [diameter]	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP69K, IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	150 VAC

W6882-10 Series

Part	Voltage Rating	Contact Material	Color	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Applications	Backshell Material, Plating	Ingress Protection	Insert Material	Number of Positions	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Features	Shielding	Contact Finish - Mating	Connector Type	Mounting Type	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6882-10SG-P-522	300 VAC	Copper Alloy	Black	Bayonet Lock	6.35 mm	0.25 in	0.22 in	5.59 mm	Automotive Communication Systems Instrumentation	Thermoplastic	IP66 IP67 IP68	Thermoplastic	10	Plastic	85 °C	-40 °C	Varies by Wire Gauge	Backshell Coupling Nut UV Resistant	Unshielded	Gold	Female Sockets Plug	Free Hanging (In-Line)	Keyed
Conxall/Switchcraft W6882-10PG-528	150 VAC	Copper Alloy	Black	Bayonet Lock					Automotive Communication Systems Instrumentation	Thermoplastic	IP67 IP69K		10	Plastic			Varies by Wire Gauge	Backshell Coupling Nut UV Resistant	Unshielded	Gold	Male Pins Plug	Free Hanging (In-Line)	Keyed	6.6 mm	7.24 mm	0.26 in 0.285 in
Conxall/Switchcraft W6882-10PG-P-522	300 VAC	Copper Alloy	Black	Bayonet Lock	6.35 mm	0.25 in	0.22 in	5.59 mm	Automotive Communication Systems Instrumentation	Thermoplastic	IP66 IP67 IP68	Thermoplastic	10	Plastic	85 °C	-40 °C	Varies by Wire Gauge	Backshell Coupling Nut UV Resistant	Unshielded	Gold	Male Pins Plug	Free Hanging (In-Line)	Keyed
Conxall/Switchcraft W6882-10PG-P-528	300 VAC	Copper Alloy	Black	Bayonet Lock					Automotive Communication Systems Instrumentation	Thermoplastic	IP66 IP67 IP68	Thermoplastic	10	Plastic	85 °C	-40 °C	Varies by Wire Gauge	Backshell Coupling Nut UV Resistant	Unshielded	Gold	Male Pins Plug	Free Hanging (In-Line)	Keyed				6.6 mm 7.11 mm	0.26 in 0.28 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.37
		10	$ 15.05
		100	$ 12.41

Description

General part information

W6882-10 Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
