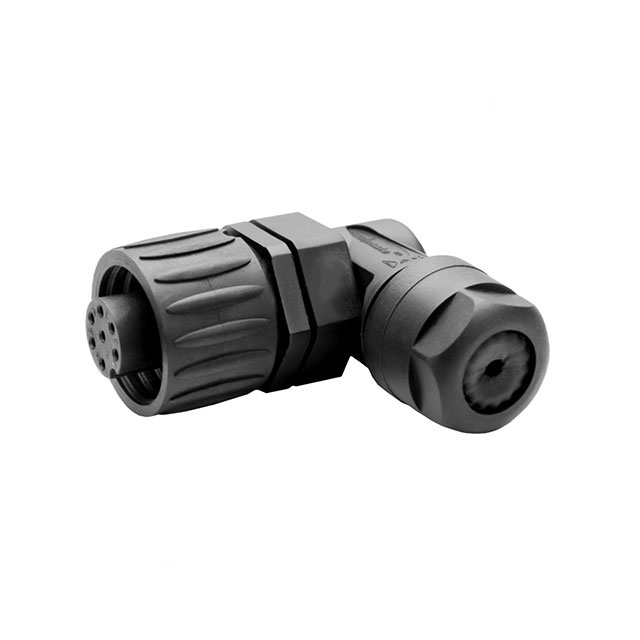

C01630F00610012

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SILVER SOLDER

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SILVER SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	C01630F00610012

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	12 A
Features	Cable Clamp
Ingress Protection	IP67, IP65
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Termination	Solder
Voltage Rating	250 VDC

Part	Ingress Protection	Termination	Current Rating (Amps)	Mounting Type	Number of Positions	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Orientation	Contact Finish - Mating	Connector Type
Amphenol Tuchel Industrial C01630F00610012	IP65 IP67	Solder	12 A	Free Hanging (In-Line) Right Angle	7	Cable Clamp	250 VDC	125 °C	-40 °C	Plastic	Keyed	Silver	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Solder
