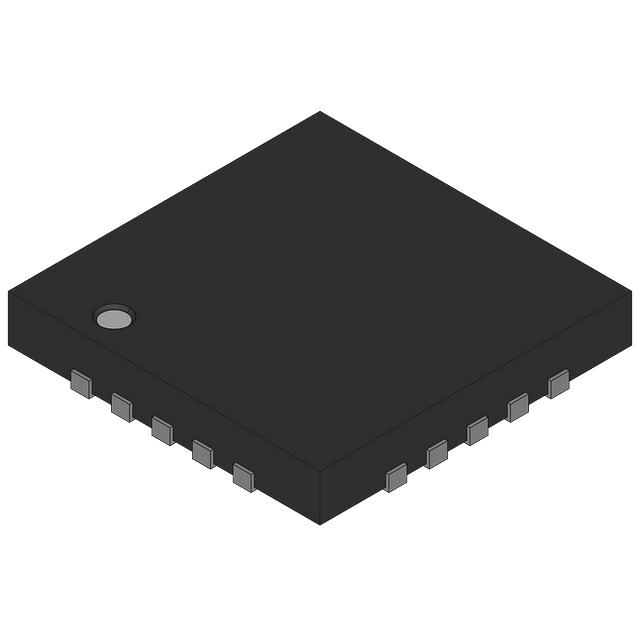

ATTINY24A-MMHR

Active

Atmel

IC MCU 8BIT 2KB FLASH 20VQFN

Search across all available documentation for this part.

Active

Atmel

IC MCU 8BIT 2KB FLASH 20VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	ATTINY24A-MMHR

Connectivity	USI
Core Processor	AVR
Core Size	8-Bit
Data Converters [custom]	8
Data Converters [custom]	10
EEPROM Size	128 x 8
Mounting Type	Surface Mount
Number of I/O	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	20-VFQFN Exposed Pad
Peripherals	PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor
Program Memory Size	2 KB
Program Memory Type	FLASH
RAM Size	128 x 8
Speed	20 MHz
Supplier Device Package	20-VQFN (3x3)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Connectivity	Oscillator Type	Program Memory Type	Mounting Type	Speed	Core Size	RAM Size	Number of I/O	Package / Case [x]	Package / Case [y]	Package / Case	Data Converters [custom]	Data Converters [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Processor	EEPROM Size	Program Memory Size	Supplier Device Package
Atmel ATTINY24-20SSUR	USI	Internal	FLASH	Surface Mount	20 MHz	8-Bit	128 x 8	12	0.154 in	3.9 mm	14-SOIC	8	10	85 °C	-40 °C	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2.7 V	5.5 V	AVR	128 x 8	2 KB
Atmel ATTINY24A-MMHR	USI	Internal	FLASH	Surface Mount	20 MHz	8-Bit	128 x 8	12			20-VFQFN Exposed Pad	8	10	85 °C	-40 °C	Brown-out Detect/Reset POR PWM Temp Sensor WDT	1.8 V	5.5 V	AVR	128 x 8	2 KB	20-VQFN (3x3)
Atmel ATTINY24V-10MU	USI	Internal	FLASH	Surface Mount	10 MHz	8-Bit	128 x 8	12			20-WFQFN Exposed Pad	8	10	85 °C	-40 °C	Brown-out Detect/Reset POR PWM Temp Sensor WDT	1.8 V	5.5 V	AVR	128 x 8	2 KB	20-QFN-EP (4x4)
Atmel ATTINY24A-CCU	USI	Internal	FLASH	Surface Mount	20 MHz	8-Bit	128 x 8	12			15-UFBGA	8	10	85 °C	-40 °C	Brown-out Detect/Reset POR PWM Temp Sensor WDT	1.8 V	5.5 V	AVR	128 x 8	2 KB	15-UFBGA (3x3)
Atmel ATTINY24-20SSU	USI	Internal	FLASH	Surface Mount	20 MHz	8-Bit	128 x 8	12	0.154 in	3.9 mm	14-SOIC	8	10	85 °C	-40 °C	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2.7 V	5.5 V	AVR	128 x 8	2 KB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AVR AVR® ATtiny Microcontroller IC 8-Bit 20MHz 2KB (1K x 16) FLASH 20-VQFN (3x3)

Technical documentation and resources

No documents available
