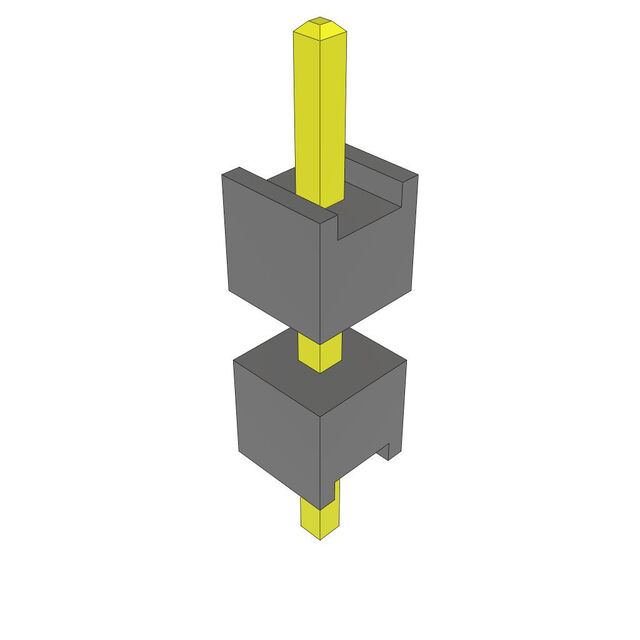

ZW-01-17-T-S-268-100

Active

Samtec Inc.

CONN BRD STACK .100" 1POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK .100" 1POS

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall Pin	Length - Overall Pin [x]	Color	Termination	Number of Rows	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Number of Positions	Length - Tail [custom]	Length - Tail [custom]	Length - Tail [x]	Length - Tail [x]	Length - Tail	Length - Tail
Samtec Inc. ZW-01-17-T-S-312-084	12.192 mm	0.48 in	Black	Solder	1	Through Hole	2.134 mm	0.084 in	0.312 in	7.925 mm	Tin	1	0.084 "	2.134 mm
Samtec Inc. ZW-01-17-T-S-268-100	12.192 mm	0.48 in	Black	Solder	1	Through Hole	2.845 mm	0.112 in	0.268 in	6.807 mm	Tin	1			0.1 "	2.54 mm
Samtec Inc. ZW-01-17-T-S-250-130	12.192 mm	0.48 in	Black	Solder	1	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Tin	1			0.13 in	3.302 mm
Samtec Inc. ZW-01-17-T-S-268-079	12.192 mm	0.48 in	Black	Solder	1	Through Hole	3.378 mm	0.133 in	0.268 in	6.807 mm	Tin	1					0.079 "	2.007 mm
Samtec Inc. ZW-01-17-T-S-200-140	12.192 mm	0.48 in	Black	Solder	1	Through Hole	3.556 mm	0.14 in			Tin	1	0.14 in					3.556 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.11

General part information

1 Position Header Spacer Connector Tin Through Hole
