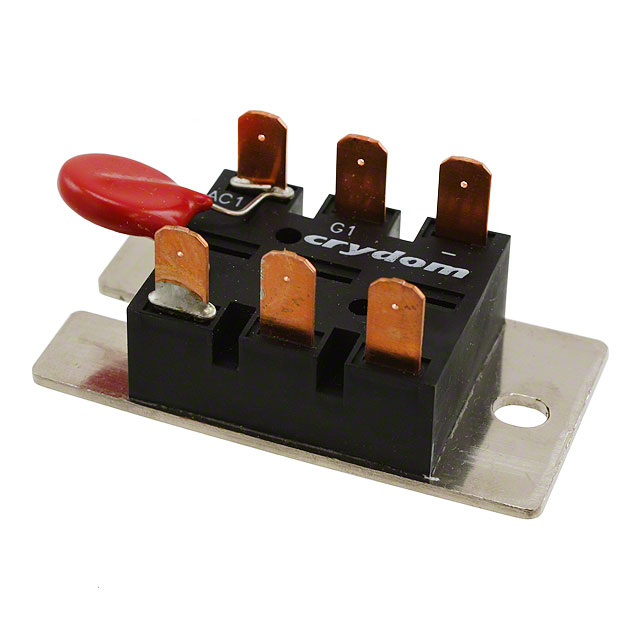

MODULE POWER 25A 1200V SCR CC

Search across all available documentation for this part.

Sensata-Crydom

MODULE POWER 25A 1200V SCR CC

Technical Specifications

Parameters and characteristics for this part

Specification	M252515FV

Current - Gate Trigger (Igt) (Max) [Max]	50 mA
Current - Hold (Ih) (Max) [Max]	75 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.2 kV

Part	Mounting Type	Package / Case	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Structure
Sensata-Crydom M252515FV	Chassis Mount	Module	2	2	2.5 V	300 A	50 mA	75 mA	1.2 kV	Bridge Single Phase - SCRs/Diodes (Layout 1)
Sensata-Crydom M252515F	Chassis Mount	Module	2	2	2.5 V	300 A	50 mA	75 mA	1.2 kV	Bridge Single Phase - SCRs/Diodes (Layout 1)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.2 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
