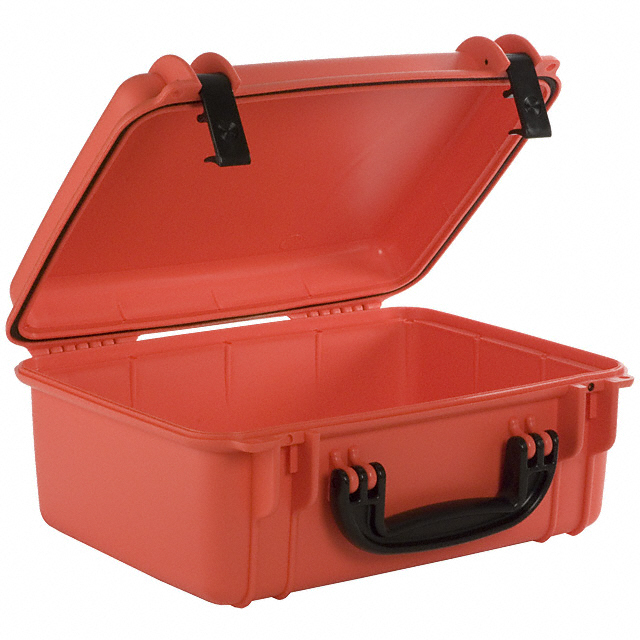

SE520,OR

Active

Serpac

CASE PLSTC ORG 14.85"L X 12.15"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SE520,OR

Active

Serpac

CASE PLSTC ORG 14.85"L X 12.15"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SE520,OR

Area (L x W)	180 in²
Area (L x W)	1161 cm²
Container Type	Case
Design	Hinged Lid, Equipment Case
Features	Airtight, Watertight
Height [z]	173.99 mm
Height [z]	6.85 in
Material	Plastic, Polypropylene
Material Flammability Rating	UL-HB75
Size / Dimension [x]	14.85 in
Size / Dimension [x]	377.19 mm
Size / Dimension [y]	308.61 mm
Size / Dimension [y]	308.61 mm
Weight	2 kg
Weight	4.5 lbs

SE520 Series

Part	Weight	Weight	Design	Height [z]	Height [z]	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Area (L x W)	Area (L x W)	Features	Color	Container Type
Serpac SE520ML,BK	2 kg	4.5 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Locks Watertight/Airtight	Black	Case
Serpac SE520FML,GM	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Locks Watertight/Airtight	Gun Metal	Case
Serpac SE520F,OR	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Watertight/Airtight		Case
Serpac SE520FML,YL	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Locks Watertight/Airtight	Yellow	Case
Serpac SE520,OR	2 kg	4.5 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Airtight Watertight		Case
Serpac SE520ML,GM	2 kg	4.5 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Locks Watertight/Airtight	Gun Metal	Case
Serpac SE520FPL,BK	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Locks Watertight/Airtight	Black	Case
Serpac SE520F,YL	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Watertight/Airtight	Yellow	Case
Serpac SE520F,GM	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Watertight/Airtight	Gun Metal	Case
Serpac SE520FPL,YL	2.4 kg	5.2 lbs	Equipment Case Hinged Lid	173.99 mm	6.85 in	UL-HB75	14.85 in	308.61 mm	377.19 mm	308.61 mm	Plastic Polypropylene	180 in²	1161 cm²	Foam Insert Locks Watertight/Airtight	Yellow	Case

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.24
		10	$ 64.11
		25	$ 57.93
		50	$ 54.07
		100	$ 50.21

Description

General part information

SE520 Series

Case Plastic, Polypropylene Orange Equipment Case, Hinged Lid 14.850" L x 12.150" W (377.19mm x 308.61mm) X 6.850" (173.99mm)

Documents

Technical documentation and resources
