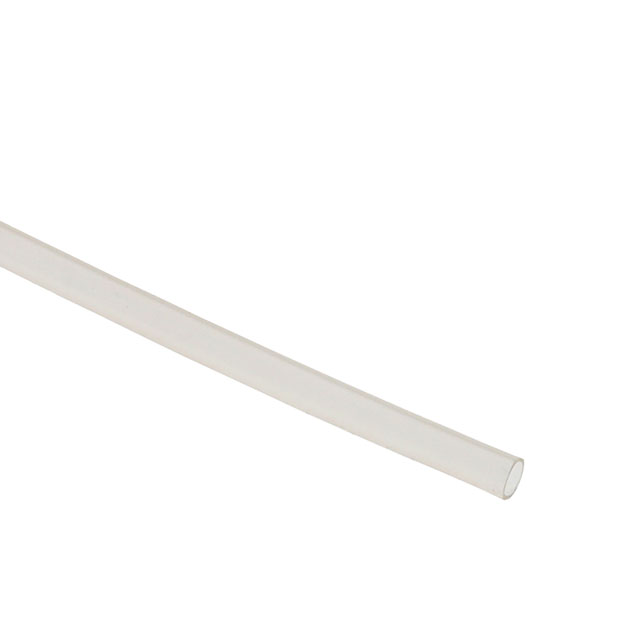

A2 1/16 CLEAR SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE A2 - HEAT-SHRINK FEET

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE A2 - HEAT-SHRINK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	A2 1/16 CLEAR SPL

Color	Clear
Inner Diameter - Recovered [diameter]	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in
Inner Diameter - Supplied [diameter]	0.063 in
Inner Diameter - Supplied [diameter]	1.6 mm
Length	Enter Number of Feet in Order Quantity
Material	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.43 mm
Recovered Wall Thickness	0.017 in
Shrink Temperature	110 °C
Shrinkage Ratio	2 to 1
Spool Size	1000.7 ft
Spool Size	305 m
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Type	Color	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Material	Length	Spool Size	Spool Size
Sumitomo Electric Interconnect Products, Inc. A2 1/16 CLEAR 4FT	2.01 mm	0.079 "	0.43 mm	0.017 in	110 °C	Tubing Flexible	Clear	2 to 1	0.79 mm	0.031 in	135 °C	-55 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated Halogen Free
Sumitomo Electric Interconnect Products, Inc. A2 1/16 CLEAR SPL	1.6 mm	0.063 in	0.43 mm	0.017 in	110 °C	Tubing Flexible	Clear	2 to 1	0.79 mm	0.031 in	135 °C	-55 °C			Halogen Free Polyolefin (PO)	Enter Number of Feet in Order Quantity	1000.7 ft	305 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Clear Enter Number of Feet in Order Quantity
