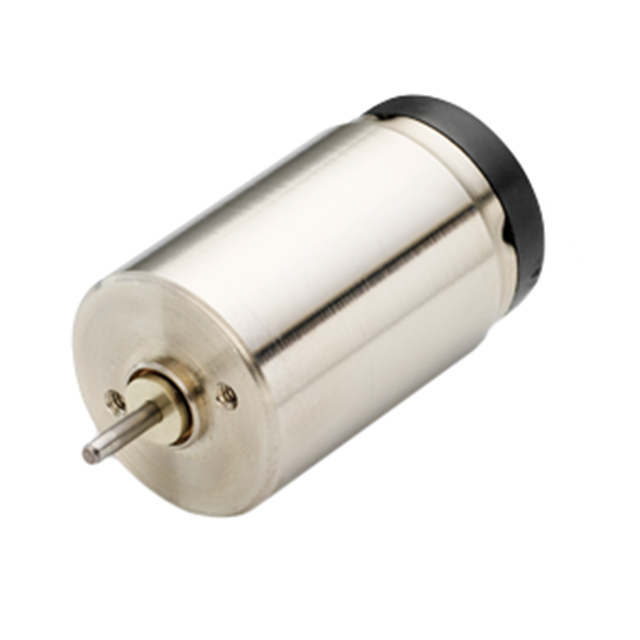

13N88-213E.1
ActivePortescap
STANDARD MOTOR 12300 RPM 6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
13N88-213E.1
ActivePortescap
STANDARD MOTOR 12300 RPM 6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 13N88-213E.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 6.2 mm |
| Length - Shaft and Bearing [x] | 0.244 in |
| Motor Type | Brushed |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 2.5 W |
| RPM | 12300 RPM |
| Size / Dimension [diameter] | 13 mm |
| Size / Dimension [diameter] | 0.511 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 3.03 mNm |
| Torque - Rated (oz-in / mNm) | 0.429 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 0.04 lb |
| Weight | 18.14 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 86.31 | |
| 5 | $ 84.80 | |||
| 10 | $ 83.28 | |||
| 25 | $ 81.77 | |||
| 50 | $ 80.56 | |||
| 100 | $ 78.74 | |||
Description
General part information
13N88 Series
Brushed DC Motor Standard 12300 RPM 2.5W 6VDC
