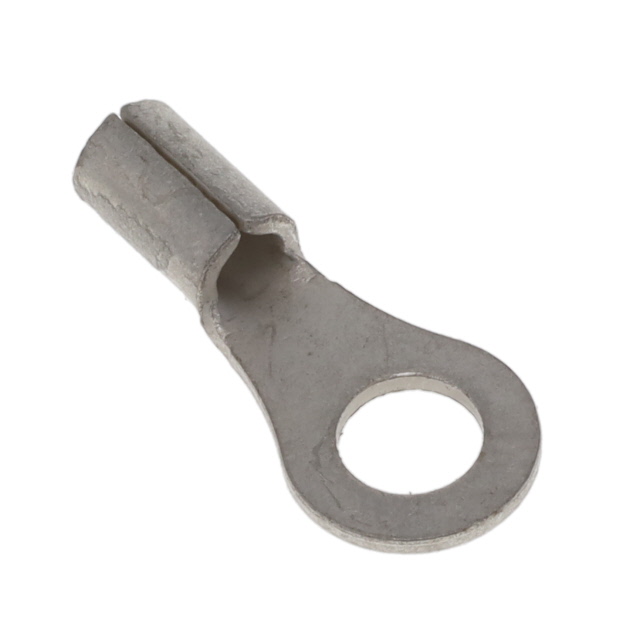

0190440031

Active

Molex

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0190440031

Active

Molex

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190440031

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	18.54 mm
Length - Overall [x]	0.73 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges [y]	7.92 mm
Width - Outer Edges [y]	0.312 in

019044 Series

Part	Stud/Tab Size	Termination	Contact Finish	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Features	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]
Molex 0190440138	1/2 Stud	Crimp	Electro-Tin	Free Hanging (In-Line)	19.3 mm	0.76 in	Copper	Heavy Duty	32.51 mm	1.28 in	Circular	Non-Insulated	50 mils	0.05 in
Molex 0190440158		Crimp	Electro-Tin	Free Hanging (In-Line)	11.86 mm	0.467 in	Copper		23.27 mm	0.916 in	Circular	Non-Insulated			0.25 Stud
Molex 0190440187		Crimp	Electro-Tin	Free Hanging (In-Line)	15.19 mm	0.598 in	Copper	Heavy Duty	26.82 mm	1.056 in	Circular	Non-Insulated	50 mils	0.05 in	0.3125 Stud
Molex 0190440066		Crimp	Electro-Tin	Free Hanging (In-Line)			Copper		14.3 mm	0.563 in	Circular	Non-Insulated	0.71 mm	0.028 in	6 Stud	5.72 mm	0.225 in	22 AWG	17.5 AWG
Molex 0190440083		Crimp	Electro-Tin	Free Hanging (In-Line)	6.5 mm	0.256 in	Copper		16.8 mm	0.661 in	Circular	Non-Insulated	0.71 mm	0.028 in	4 Stud			22 AWG	17.5 AWG
Molex 0190440031	8 Stud	Crimp	Electro-Tin	Free Hanging (In-Line)	7.92 mm	0.312 in	Copper		18.54 mm	0.73 in	Circular	Non-Insulated
Molex 0190440146	3/8 Stud	Crimp	Electro-Tin	Free Hanging (In-Line)			Copper		28.32 mm	1.115 "	Circular	Non-Insulated
Molex 0190440173		Crimp	Electro-Tin	Free Hanging (In-Line)	7.42 mm	0.292 in	Copper	Heavy Duty	18.82 mm	0.741 in	Circular	Non-Insulated	50 mils	0.05 in	6 Stud
Molex 0190440152		Crimp	Electro-Tin	Free Hanging (In-Line)	6.35 mm	0.25 "	Copper		16.23 mm	0.639 in	Circular	Non-Insulated			6 Stud
Molex 0190440164		Crimp	Electro-Tin	Free Hanging (In-Line)			Copper	Heavy Duty	0.785 in		Circular	Non-Insulated	50 mils	0.05 in	10 Stud					0.385 in	9.78 mm	19.94 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.15
		10	$ 0.12
		100	$ 0.08
		1000	$ 0.07
		3000	$ 0.06

Description

General part information

019044 Series

Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
