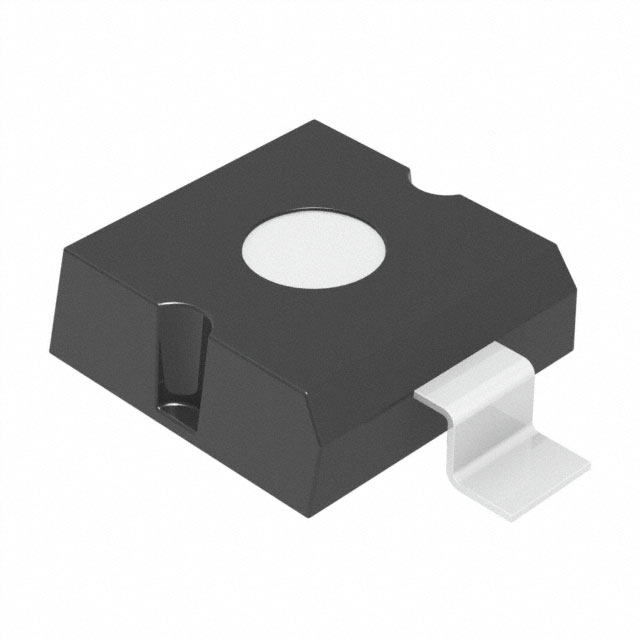

63SPD100A

Active

SMC Diode Solutions

DIODE SCHOTT 100V 60A MINI SPD-4

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTT 100V 60A MINI SPD-4

Technical Specifications

Parameters and characteristics for this part

Specification	63SPD100A

Capacitance @ Vr, F	1200 pF
Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	Nonstandard SMD
Speed	200 mA, 500 ns
Supplier Device Package	Mini SPD-4
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Supplier Device Package	Package / Case
SMC Diode Solutions 63SPD100A	200 mA 500 ns	175 ░C	-55 C	1 mA	Surface Mount	1200 pF	100 V	Schottky	60 A	Mini SPD-4	Nonstandard SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 60A Surface Mount Mini SPD-4
