1027768

Obsolete

SICK, Inc.

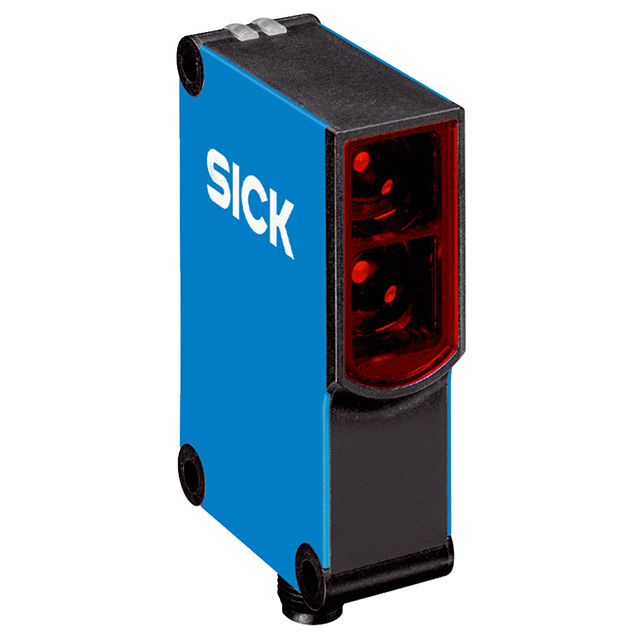

SENSOR RETROREFLECTIVE 15M PNP

Search across all available documentation for this part.

Obsolete

SICK, Inc.

SENSOR RETROREFLECTIVE 15M PNP

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Response Time	Ingress Protection
SICK, Inc. 1027768	Red (660nm)	Retroreflective	PNP	30 VDC	10 VDC	Cable	78.74 in	2 m	-40 °C	60 °C	590.551 in	100 mm	15 m	3.937 "	500 µs
SICK, Inc. 1027982	Red (660nm)	Retroreflective	PNP	30 VDC	10 VDC	Connector M12			-40 °C	60 °C	590.551 in	100 mm	15 m	3.937 "	500 µs	IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Retroreflective Optical Sensor 3.937" ~ 590.551" (100mm ~ 15m) PNP

Technical documentation and resources

No documents available
