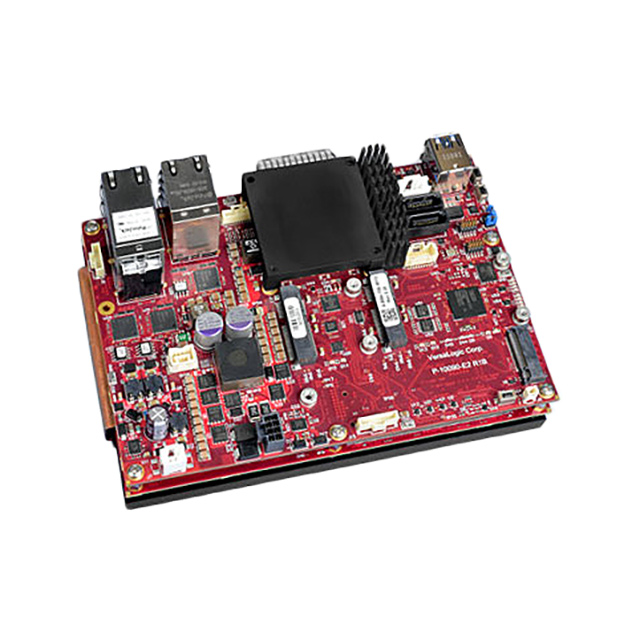

VL-ESU-5070ECP-00
ActiveVersaLogic Corporation
SBC 2.0GHZ 16 CORE 64GB/- RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VL-ESU-5070ECP-00
ActiveVersaLogic Corporation
SBC 2.0GHZ 16 CORE 64GB/- RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VL-ESU-5070ECP-00 |
|---|---|
| Cooling Type | Heat Plate |
| Core Processor | Intel Atom C3958 |
| Digital I/O Lines | 14 |
| Ethernet | 10 |
| Expansion Site/Bus | mPCIe, M.2 |
| Form Factor | COM Express |
| Number of Cores | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | - |
| RAM Capacity/Installed | 64 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 154.99 mm |
| Size / Dimension [x] | 6.102 in |
| Size / Dimension [y] | 4.331 in |
| Size / Dimension [y] | 110 mm |
| Speed | 2 GHz |
| Storage Interface | M.2, mSATA, SATA |
| USB | USB 3.0 (2) |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3257.00 | |
Description
General part information
VL-ESU Series
Single Board Computer 2GHz 16 Core 64GB/- RAM Intel Atom C3958
Documents
Technical documentation and resources
