R316553000

Active

Radiall USA, Inc.

BNCHV 90530 F BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNCHV 90530 F BHD

Technical Specifications

Parameters and characteristics for this part

Specification	R316553000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Material	Body Material	Impedance	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Includes	Frequency - Max [Max]	Connector Type	Body Finish	Center Contact Plating	Housing Color	Connector Style	Number of Ports	Fastening Type	Features	Contact Termination	Shield Termination	Dielectric Material
Radiall USA, Inc. R316553000	Beryllium Copper Brass	Brass	50 Ohms	500	155 °C	-55 °C	Bulkhead - Rear Side Nut	1 Connector 1 Lockwasher 1 Nut	2 GHz	Female Socket Receptacle	Nickel	Silver	Silver	BNC	1	Bayonet Lock	Extended Insulation	Solder Cup	Solder	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

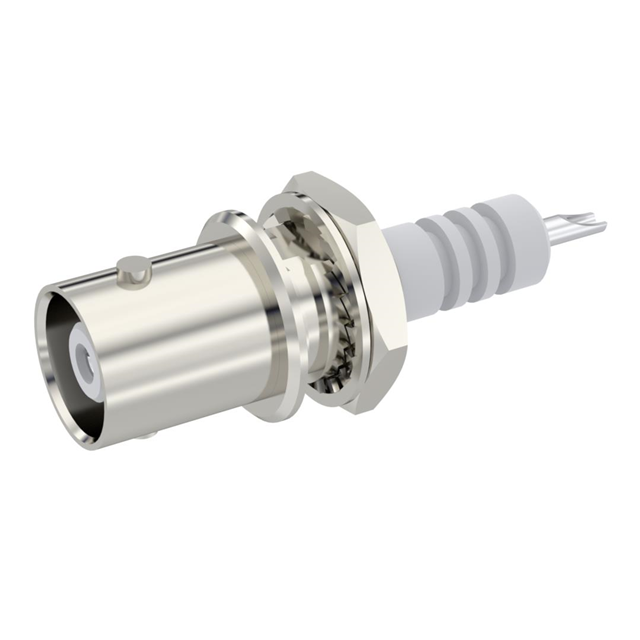

BNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
