T9GV1L24-110

Active

TE Connectivity Potter & Brumfield Relays

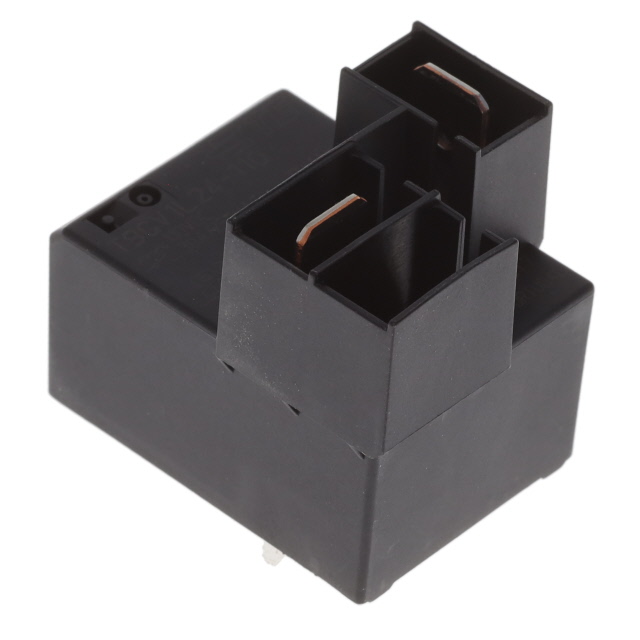

RELAY GEN PURPOSE SPST 30A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9GV1L24-110

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 30A 110V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9GV1L24-110

Approval Agency	CQC, VDE, cURus
Coil Current	8.2 mA
Coil Insulation	Class B
Coil Resistance	13.4 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A
Load - Max Switching	14400 VA
Mounting Type	Through Hole
Must Operate Voltage	82.5 VDC
Must Release Voltage	11 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

T9GV1 Series

Part	Contact Form	Mounting Type	Operate Time	Contact Material	Seal Rating	Coil Insulation	Coil Resistance	Switching Voltage	Must Operate Voltage	Contact Rating (Current)	Termination Style	Relay Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Coil Current	Load - Max Switching	Release Time	Must Release Voltage	Approval Agency	Termination Style
TE Connectivity Potter & Brumfield Relays T9GV1L14-12	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	160 Ohms	480 VAC	9 VDC	30 A	PC Pin	General Purpose	12 VDC	-40 °C	105 ░C	Non Latching	75 mA	14400 VA	22 ms	1.2 VDC	CQC cURus VDE
TE Connectivity Potter & Brumfield Relays T9GV1L14-110	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	13.4 kOhms	480 VAC	82.5 VDC	30 A	PC Pin	General Purpose	110 VDC	-40 °C	105 ░C	Non Latching	8.2 mA	14400 VA	22 ms	11 VDC	CQC cURus VDE
TE Connectivity Potter & Brumfield Relays T9GV1L14-18	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	360 Ohms	480 VAC	13.5 VDC	30 A	PC Pin	General Purpose	18 VDC	-40 °C	105 ░C	Non Latching	50 mA	14400 VA	22 ms	1.8 VDC	CQC cURus VDE
TE Connectivity Potter & Brumfield Relays T9GV1L24-110	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	13.4 kOhms	480 VAC	82.5 VDC	30 A	PC Pin Quick Connect	General Purpose	110 VDC	-40 °C	105 ░C	Non Latching	8.2 mA	14400 VA	22 ms	11 VDC	CQC cURus VDE	0.25 in
TE Connectivity Potter & Brumfield Relays T9GV1L24-5	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	28 Ohms	480 VAC	3.75 VDC	30 A	PC Pin Quick Connect	General Purpose	5 VDC	-40 °C	105 ░C	Non Latching	180 mA	14400 VA	22 ms	0.5 VDC	CQC cURus VDE	0.25 in
TE Connectivity Potter & Brumfield Relays T9GV1L24-18	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	360 Ohms	480 VAC	13.5 VDC	30 A	PC Pin Quick Connect	General Purpose	18 VDC	-40 °C	105 ░C	Non Latching	50 mA	14400 VA	22 ms	1.8 VDC	CQC cURus VDE	0.25 in
TE Connectivity Potter & Brumfield Relays T9GV1L24-15	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	249 Ohms	480 VAC	11.25 VDC	30 A	PC Pin Quick Connect	General Purpose	15 VDC	-40 °C	105 ░C	Non Latching	60 mA	14400 VA	22 ms	1.5 VDC	CQC cURus VDE	0.25 in
TE Connectivity Potter & Brumfield Relays T9GV1L24-24	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	640 Ohms	480 VAC	18 VDC	30 A	PC Pin Quick Connect	General Purpose	24 VDC	-40 °C	105 ░C	Non Latching	37.5 mA	14400 VA	22 ms	2.4 VDC	CQC cURus VDE	0.25 in
TE Connectivity Potter & Brumfield Relays T9GV1L14-48	SPST-NO (1 Form A)	Through Hole	15 ms	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	Class B	2500 Ohms	480 VAC	36 VDC	30 A	PC Pin	General Purpose	48 VDC	-40 °C	105 ░C	Non Latching	18.8 mA	14400 VA	22 ms	4.8 VDC	CQC cURus VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.11
		10	$ 4.79
		30	$ 4.26
		50	$ 4.05
		100	$ 3.83
		250	$ 3.75

Description

General part information

T9GV1 Series

General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Through Hole
