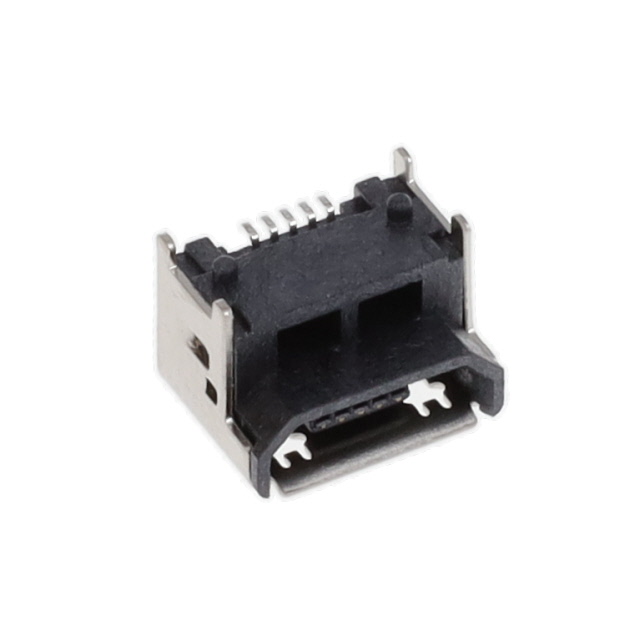

GMCB05801124EU
ActiveAmphenol ICC (Commercial Products)
MICRO USB RECEPTACLE, SMT, R/A,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMCB05801124EU
ActiveAmphenol ICC (Commercial Products)
MICRO USB RECEPTACLE, SMT, R/A,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMCB05801124EU |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 1 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| Tape & Reel (TR) | 800 | $ 0.24 | ||
| 1600 | $ 0.24 | |||
Description
General part information
GMCB058 Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
