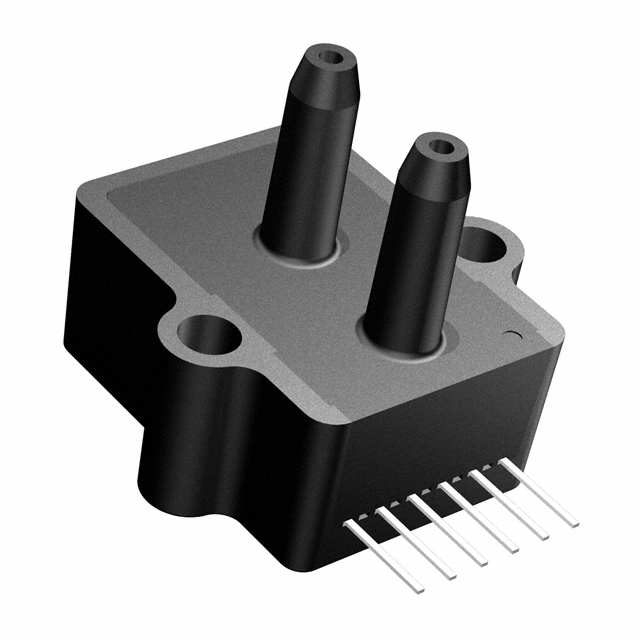

100 PSI-A-DO
ObsoleteAmphenol All Sensors Corporation
SENSOR 100PSIA 0.19" 12BIT
Deep-Dive with AI
Search across all available documentation for this part.
100 PSI-A-DO
ObsoleteAmphenol All Sensors Corporation
SENSOR 100PSIA 0.19" 12BIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100 PSI-A-DO |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 200 PSI |
| Maximum Pressure [Max] | 1378.95 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 12 b |
| Output Type | SPI |
| Package / Case | 6-SIP Module |
| Port Size | Male |
| Port Size | 0.19 " |
| Port Size | 4.8 mm |
| Port Style | Barbless |
| Termination Style | PC Pin |
| Voltage - Supply | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PSI-A-DO Series
Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.19" (4.8mm) Tube 12 b 6-SIP Module
Documents
Technical documentation and resources
No documents available
