202-0044-01

Active

Schmartboard, Inc.

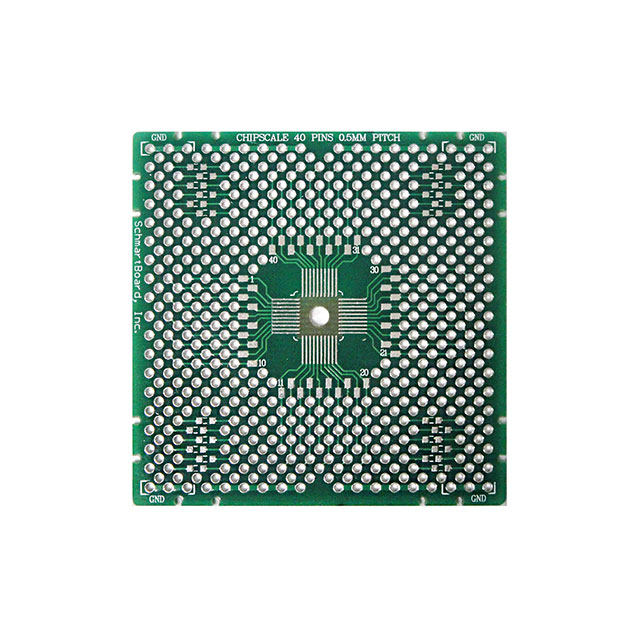

QFN SCHMARTBOARDEZ 40 PINS, 0.5M

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFN SCHMARTBOARDEZ 40 PINS, 0.5M

Technical Specifications

Parameters and characteristics for this part

Specification	202-0044-01

Number of Positions	40
Package Accepted	QFN
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

Part	Pitch [x]	Pitch [x]	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package Accepted	Number of Positions
Schmartboard, Inc. 202-0044-01	0.5 mm	0.02 in	SMD to Plated Through Hole Board	2 in	50.8 mm	50.8 mm	2 in	QFN	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFN SCHMARTBOARDEZ 40 PINS, 0.5M

Technical documentation and resources
