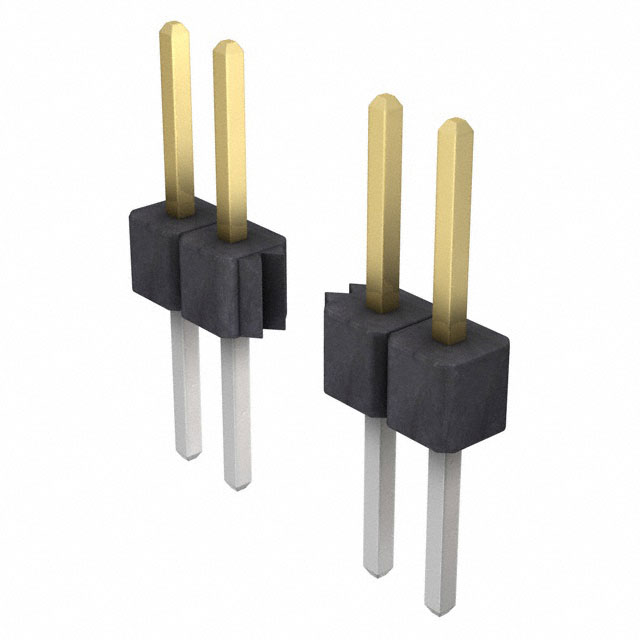

PZC32SABN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Square Post Header

PZC32SABN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Square Post Header

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC32SABN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC32 Series

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Shrouding	Style	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Contact Finish - Mating	Contact Finish - Post	Insulation Material	Number of Rows	Connector Type	Termination	Contact Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
Sullins Connector Solutions PZC32SAFN	Square	2.54 µm	100 µin	Push-Pull	0.62 in	15.75 mm	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	24.13 mm	0.95 in	UL94 V-0
Sullins Connector Solutions PZC32SAAN	Square	2.54 µm	100 µin	Push-Pull			Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	11.43 mm	0.45 "	UL94 V-0	0.12 in	3.05 mm
Sullins Connector Solutions PZC32SAGN	Square	2.54 µm	100 µin	Push-Pull			Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	26.67 mm	1.05 in	UL94 V-0	0.72 "	18.29 mm
Sullins Connector Solutions PZC32SFBN	Square	2.54 µm	100 µin	Push-Pull	0.22 in	5.58 mm	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.318 "		Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	16.21 mm	0.638 in	UL94 V-0			8.08 mm
Sullins Connector Solutions PZC32DFEN	Square	2.54 µm	100 µin	Push-Pull	0.52 "	13.21 mm	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.318 "		Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	2	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	23.83 mm	0.938 in	UL94 V-0			8.08 mm	2.54 mm	0.1 in	64
Sullins Connector Solutions PZC32DABN	Square	2.54 µm	100 µin	Push-Pull	0.23 in	5.84 mm	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	2	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	14.22 mm	0.56 in	UL94 V-0				2.54 mm	0.1 in	64
Sullins Connector Solutions PZC32SABN	Square	2.54 µm	100 µin	Push-Pull	0.23 in	5.84 mm	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	14.22 mm	0.56 in	UL94 V-0
Sullins Connector Solutions PZC32DBAN	Square	2.54 µm	100 µin	Push-Pull			Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.24 in	6.1 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	2	Header	Solder	Copper Alloy	All	Through Hole Right Angle	10 çin	0.25 çm			UL94 V-0	0.12 in	3.05 mm		2.54 mm	0.1 in	64
Sullins Connector Solutions PZC32SAHN	Square	2.54 µm	100 µin	Push-Pull			Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	1	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	29.21 mm	1.15 in	UL94 V-0	0.82 in	20.83 mm
Sullins Connector Solutions PZC32DAAN	Square	2.54 µm	100 µin	Push-Pull			Unshrouded	Board to Board Cable	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	0.1 in	2.54 mm	Male Pin	3 A	Gold	Tin	Polyester Thermoplastic	2	Header	Solder	Copper Alloy	All	Through Hole	10 çin	0.25 çm	11.43 mm	0.45 "	UL94 V-0	0.12 in	3.05 mm		2.54 mm	0.1 in	64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PZC32 Series

Connector Header Through Hole 32 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Square Post Header

Datasheet
