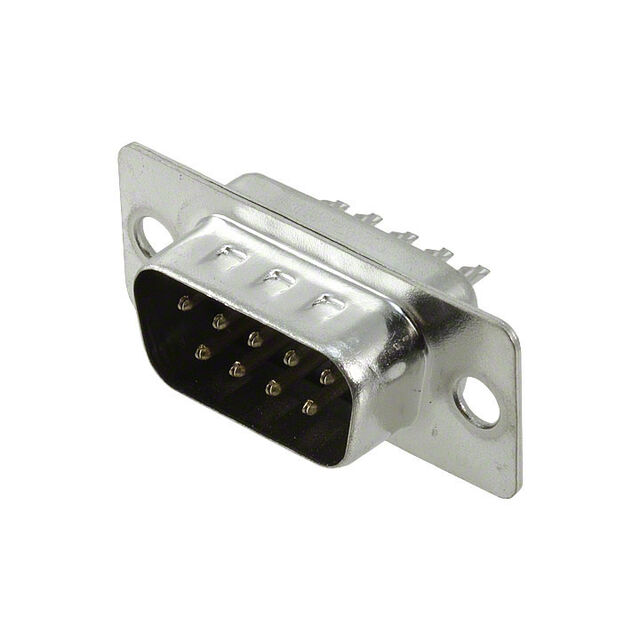

CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDS100-PRW2-M09-SN00-1
ObsoleteSullins Connector Solutions
CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS100-PRW2-M09-SN00-1 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Voltage Rating | 250 VDC |
| Wire Gauge | 22 AWG |
SDS100 Series
| Part | Shell Size, Connector Layout | Wire Gauge | Current Rating (Amps) | Features | Contact Finish Thickness | Contact Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Connector Style | Contact Form | Voltage Rating | Material Flammability Rating | Mounting Type | Contact Material | Connector Type | Contact Type | Number of Positions | Number of Rows | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 5 | 22 AWG | 3 A | Grounding Indents | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Male Pins Plug | Signal | 50 | 3 | Black | |||
Sullins Connector Solutions | 22 AWG | 3 A | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Signal | 9 | 2 | White | DE E | 1 | ||||
Sullins Connector Solutions | 22 AWG | 3 A | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | 4-40 | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Signal | 9 | 2 | White | DE E | 1 | |||
Sullins Connector Solutions | 22 AWG | 3 A | Grounding Indents | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Male Pins Plug | Signal | 9 | 2 | Black | DE E | 1 | ||
Sullins Connector Solutions | 22 AWG | 3 A | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Signal | 9 | 2 | White | DE E | 1 | |||
Sullins Connector Solutions | 22 AWG | 3 A | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Signal | 2 | Black | B DB | 3 | ||||
Sullins Connector Solutions | 22 AWG | 3 A | Grounding Indents | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Male Pins Plug | Signal | 37 | 2 | Black | 4 (DC C) | |||
Sullins Connector Solutions | 22 AWG | 3 A | Grounding Indents | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Male Pins Plug | Signal | 2 | White | B DB | 3 | |||
Sullins Connector Solutions | 22 AWG | 3 A | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Signal | 9 | 2 | Black | DE E | 1 | |||
Sullins Connector Solutions | 2 | 22 AWG | 3 A | Grounding Indents | Flash | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | D-Sub | Stamped | 250 VDC | UL94 V-0 | Free Hanging (In-Line) | Brass | Male Pins Plug | Signal | 15 | 2 | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SDS100 Series
9 Position D-Sub Plug, Male Pins Connector
