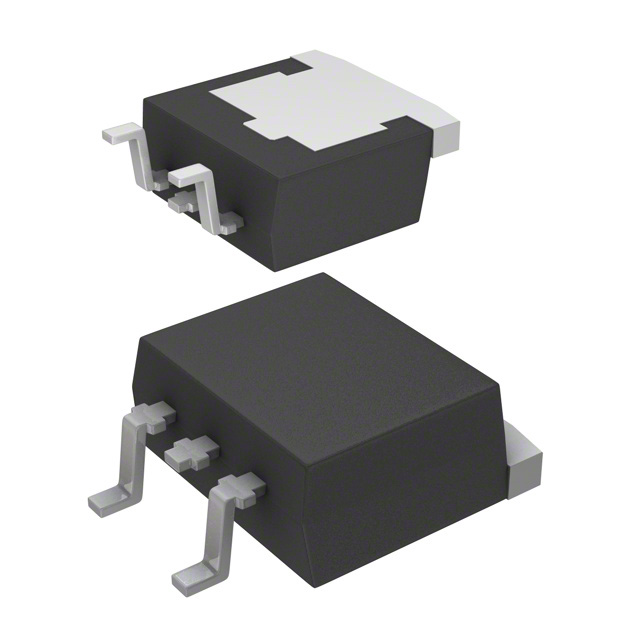

RJH60V3BDPE-00#J3
ObsoleteRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
RJH60V3BDPE-00#J3
ObsoleteRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJH60V3BDPE-00#J3 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 35 A |
| Gate Charge | 60 nC |
| IGBT Type | Trench |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SC-83 |
| Power - Max [Max] | 113 W |
| Reverse Recovery Time (trr) | 25 ns |
| Switching Energy | 90 µJ, 300 µJ |
| Td (on/off) @ 25°C | 40 ns, 90 ns |
| Test Condition [custom] | 5 Ohm |
| Test Condition [custom] | 300 V, 15 V |
| Test Condition [custom] | 17 A |
| Vce(on) (Max) @ Vge, Ic | 2.2 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
60Vx Series Series
IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.
