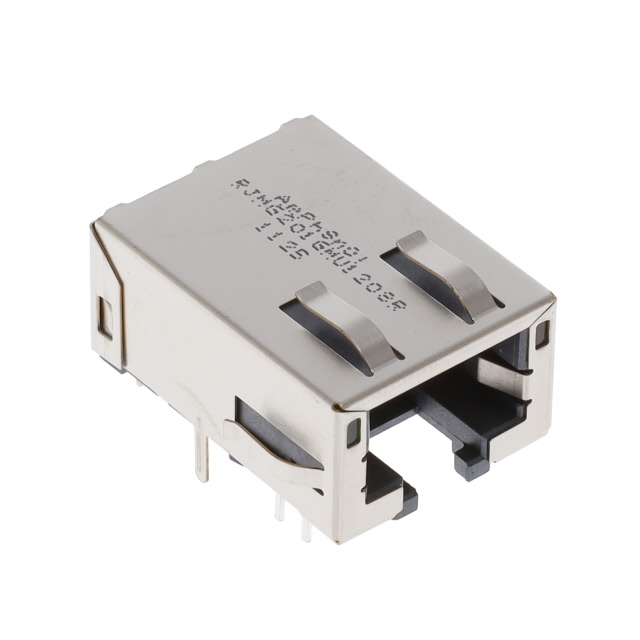

RJMG201GMU1208R

Obsolete

Amphenol ICC (Commercial Products)

RJMAG 1X1, 1000 BASE-T, WITH LED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

RJMAG 1X1, 1000 BASE-T, WITH LED

Technical Specifications

Parameters and characteristics for this part

Part	Tab Direction	Height Above Board [z]	Height Above Board	Shield Material	Applications	LED Color	Connector Type	Contact Material	Number of Ports	Orientation	Termination	Number of Rows	Mounting Type	Number of Cores per Jack	Contact Finish	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Features
Amphenol ICC (Commercial Products) RJMG201K21120FR	User Selectable	0.67 in	17.02 mm	Stainless Steel	10/100/1000 Base-T AutoMDIX	Green - Green	RJ45	Phosphor Bronze	1	90 °	Solder	1	Through Hole	8	Gold	Unshielded	70 °C	0 °C	Liquid Crystal Polymer (LCP)	50 µin	1.27 µm
Amphenol ICC (Commercial Products) RJMG201826230ER	Down		11.38 mm	Stainless Steel	10/100/1000 Base-T AutoMDIX	Green Orange - Yellow	RJ45	Phosphor Bronze	1	90 °	Solder	1	Through Hole	8	Gold	Shielded EMI Finger	85 °C	-40 °C	Thermoplastic	30 Áin	0.76 Ám	0.448 in
Amphenol ICC (Commercial Products) RJMG201GMU1208R	Down		11.4 mm	Copper Alloy	10/100/1000 Base-T AutoMDIX	Green Orange	RJ45	Copper Alloy	1	90 °	Solder	1	Through Hole	8	Gold	Shielded EMI Finger			Liquid Crystal Polymer (LCP)	6 Áin	0.152 Ám	0.449 in	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
