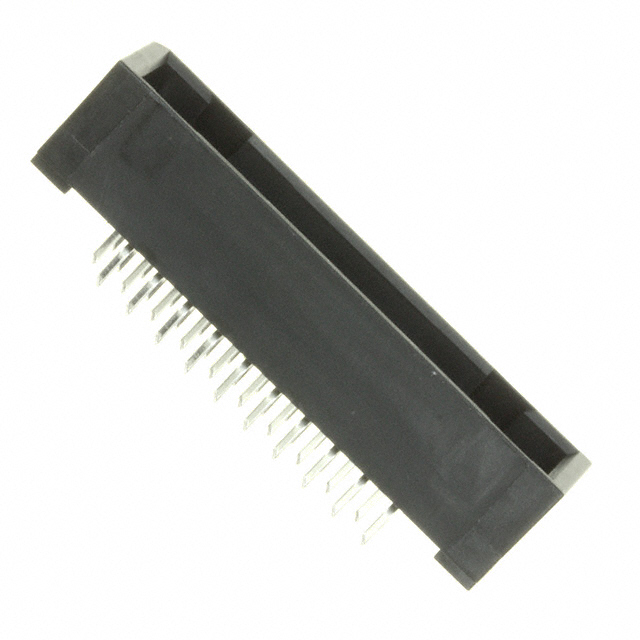

TX25-40P-6ST-N1E

Active

JAE Electronics

CONN PLUG 40POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 40POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board
JAE Electronics TX25-40P-6ST-E1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	12 mm 16 mm 18 mm
JAE Electronics TX25-40P-LT-H1E	40	Gold	Through Hole Right Angle	0.05 in	1.27 mm	4 Áin	0.1 Ám	2		9 mm	0.354 in
JAE Electronics TX25-40P-12ST-H1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	18 mm 22 mm 24 mm	15.2 mm	0.598 in
JAE Electronics TX25-40P-12ST-N1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	18 mm 22 mm 24 mm	15.2 mm	0.598 in
JAE Electronics TX25-40P-8ST-H1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	14 mm 18 mm 20 mm	11.2 mm	0.441 in
JAE Electronics TX25-40P-6ST-N1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	12 mm 16 mm 18 mm	9.2 mm	0.362 in
JAE Electronics TX25-40P-8ST-N1E	40	Gold	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	2	14 mm 18 mm 20 mm	11.2 mm	0.441 in
JAE Electronics TX25-40P-LT-N1E	40	Gold	Through Hole Right Angle	0.05 in	1.27 mm	4 Áin	0.1 Ám	2		9 mm	0.354 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.08

General part information

40 Position Connector Plug, Center Strip Contacts Through Hole Gold
