E2203S.30.86
ActivePrysmian Group

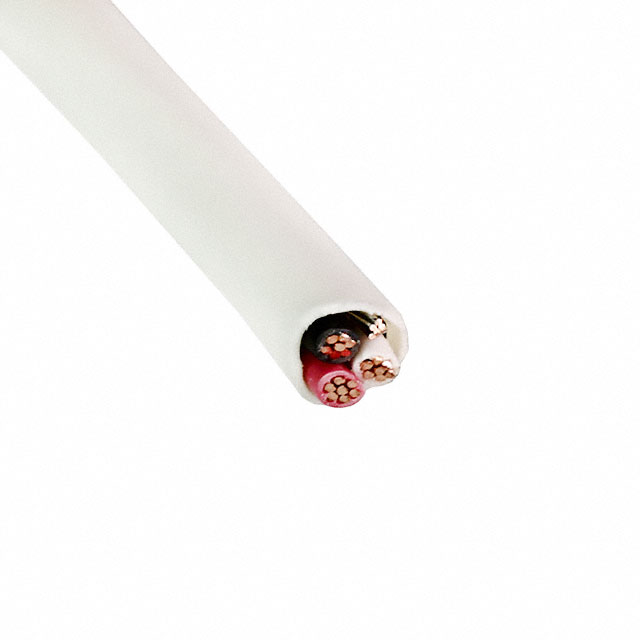

CABLE 3COND 18AWG NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
E2203S.30.86
ActivePrysmian Group
CABLE 3COND 18AWG NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2203S.30.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.29 mm |
| Jacket (Insulation) Diameter [diameter] | 0.169 in |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 277.07 | |
| 2 | $ 263.54 | |||
| 3 | $ 255.88 | |||
| 5 | $ 246.50 | |||
| 7 | $ 240.48 | |||
| 10 | $ 234.23 | |||
| 25 | $ 218.77 | |||
Description
General part information
E2203S Series
3 Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)
