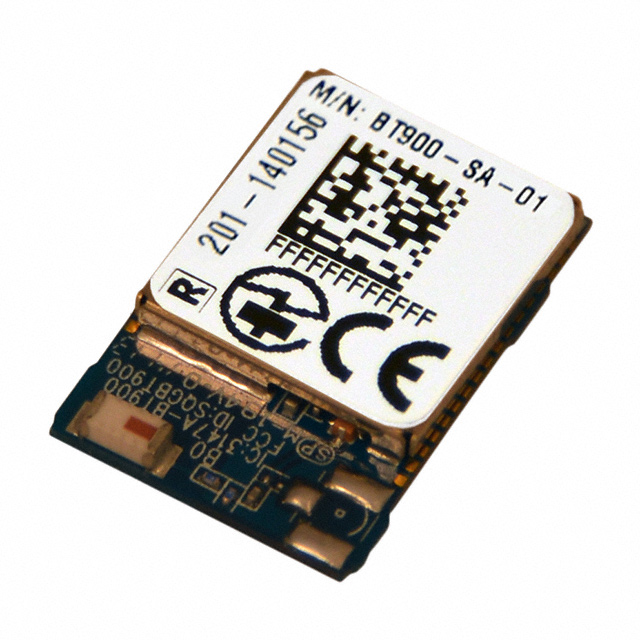

BT900-SA

Active

Ezurio LLC

BLUETOOTH V4.0 (BLE) SMART SOC 3MBPS 3.3V 47-PIN EACH

Search across all available documentation for this part.

Active

Ezurio LLC

BLUETOOTH V4.0 (BLE) SMART SOC 3MBPS 3.3V 47-PIN EACH

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Memory Size	Protocol	Antenna Type	Package / Case	Sensitivity	Serial Interfaces	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Current - Transmitting	Current - Receiving	Frequency	Interface	Modulation or Protocol	Applications
Ezurio LLC BT900-SA-03-T/R	8 dBm	6 kB	Bluetooth v4.0	Integrated Chip	44-SMD Module	-90 dBm	ADC GPIO I2C PWM SIO SPI UART	4 Mbps	1.75 V	3.6 V	2.48 GHz	2.402 GHz	Surface Mount	Bluetooth WiFi	85 °C	-40 °C
Ezurio LLC BT900-SA	8 dBm		Bluetooth v4.0 Dual Mode	Integrated Chip	Module	-90 dBm	I2C SPI UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C	CSR8811	85 mA	85 mA	2.4 GHz
Ezurio LLC BT900-US	8 dBm					-90 dBm					2.48 GHz	2.4 GHz									USB	Bluetooth v4.0 Low Energy (BLE)	General Purpose
Ezurio LLC BT900-SC	8 dBm		Bluetooth v4.0 Dual Mode	Antenna Not Included U.FL	Module	-90 dBm	I2C SPI UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C	CSR8811	85 mA	85 mA	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Dual Mode Transceiver Module 2.4GHz Integrated, Chip Surface Mount
