AZ7709T-1AE-12DSEF

Active

American Zettler

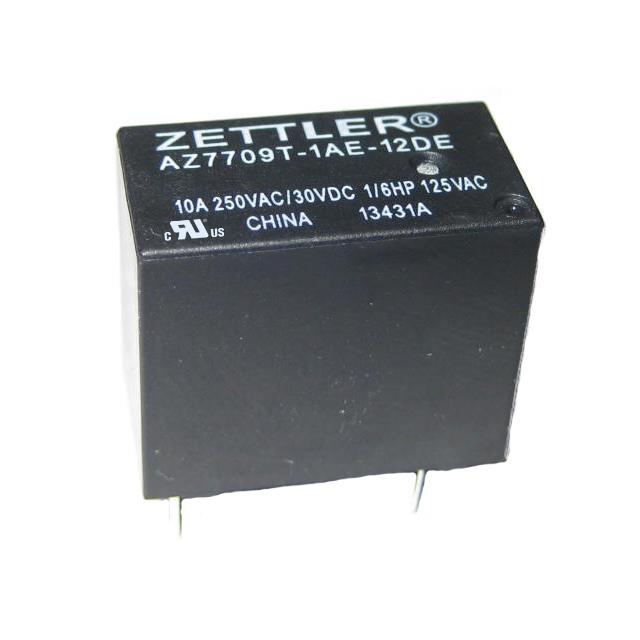

RELAY GEN PURPOSE SPST 10A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ7709T-1AE-12DSEF

Active

American Zettler

RELAY GEN PURPOSE SPST 10A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ7709T-1AE-12DSEF

Approval Agency	TUV, cUR, UL
Coil Current	16.7 mA
Coil Insulation	Class F
Coil Resistance	720 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	0.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

AZ7709T Series

Part	Contact Form	Mounting Type	Seal Rating	Relay Type	Coil Type	Approval Agency	Termination Style	Coil Current	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Load - Max Switching	Switching Voltage [Max]	Must Release Voltage	Coil Resistance	Must Operate Voltage	Coil Voltage	Contact Rating (Current)	Operate Time	Coil Insulation
American Zettler AZ7709T-1AE-18DSE	SPST-NO (1 Form A)	Through Hole	Sealed - Fully	General Purpose	Non Latching	cUR TUV UL	PC Pin	11.1 mA	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.9 VDC	1.62 kOhms	13.5 VDC	18 VDC	10 A	8 ms
American Zettler AZ7709T-1AE-18DF	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin		Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.9 VDC	720 Ohms	12.6 VDC	18 VDC	10 A	8 ms	Class F
American Zettler AZ7709T-1AE-9DS	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin	22.5 mA	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.45 VDC	400 Ohms	6.75 VDC	9 VDC	10 A	8 ms
American Zettler AZ7709T-1AE-24DSE	SPST-NO (1 Form A)	Through Hole	Sealed - Fully	General Purpose	Non Latching	cUR TUV UL	PC Pin	8.6 mA	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	1.2 VDC		18 VDC	24 VDC	10 A	8 ms
American Zettler AZ7709T-1AE-18DSF	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin	11.1 mA	Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.9 VDC	1.62 kOhms	13.5 VDC	18 VDC	10 A	8 ms	Class F
American Zettler AZ7709T-1AE-12DSEF	SPST-NO (1 Form A)	Through Hole	Sealed - Fully	General Purpose	Non Latching	cUR TUV UL	PC Pin	16.7 mA	Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.6 VDC	720 Ohms	9 VDC	12 VDC	10 A	8 ms	Class F
American Zettler AZ7709T-1AE-6DSEF	SPST-NO (1 Form A)	Through Hole	Sealed - Fully	General Purpose	Non Latching	cUR TUV UL	PC Pin	33.3 mA	Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.3 VDC	180 Ohms	4.5 VDC		10 A	8 ms	Class F
American Zettler AZ7709T-1AE-5DF	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin	90.9 mA	Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	0.25 VDC	55 Ohms	3.5 VDC	5 VDC	10 A	8 ms	Class F
American Zettler AZ7709T-1AE-48DF	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin	9.4 mA	Silver Tin Oxide (AgSnO)	105 ░C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	2.4 VDC	5.12 kOhms	33.6 VDC	48 VDC	10 A	8 ms	Class F
American Zettler AZ7709T-1AE-24D	SPST-NO (1 Form A)	Through Hole		General Purpose	Non Latching	cUR TUV UL	PC Pin	18.8 mA	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	4 ms	300 W 2500 VA	30 VDC 250 VAC	1.2 VDC	1280 Ohms	16.8 VDC	24 VDC	10 A	8 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.09
		10	$ 0.97
		25	$ 0.93
		40	$ 0.91
		100	$ 0.87
		300	$ 0.82
		500	$ 0.80
		1000	$ 0.77
		4900	$ 0.71

Description

General part information

AZ7709T Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
