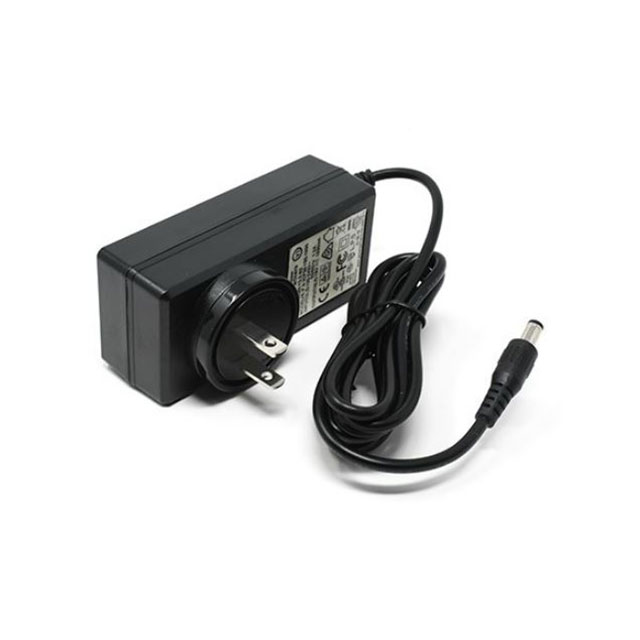

PSAW36I-14-B2
ActiveTT Electronics/Power Partners Inc.
AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSAW36I-14-B2
ActiveTT Electronics/Power Partners Inc.
AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAW36I-14-B2 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CCC, KC, CB, CE, FCC |
| Cord Length | 47 " |
| Cord Length | 1.2 m |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade (Included) |
| Input Type | Multi-Blade (Single Blade Included) |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [x] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 97.3 mm |
| Size / Dimension [x] | 3.83 " |
| Size / Dimension [y] | 45.2 mm |
| Size / Dimension [y] | 1.78 " |
| Size / Dimension [z] | 31 mm |
| Size / Dimension [z] | 1.22 in |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.44 | |
| 5 | $ 14.05 | |||
| 10 | $ 13.27 | |||
| 25 | $ 12.49 | |||
| 50 | $ 11.71 | |||
| 100 | $ 10.93 | |||
| 250 | $ 10.54 | |||
| 500 | $ 10.38 | |||
Description
General part information
PSAW36 Series
24V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Single Blade Included) Input
