IMSA-13103S-16Y500

Active

IRISO USA Inc.

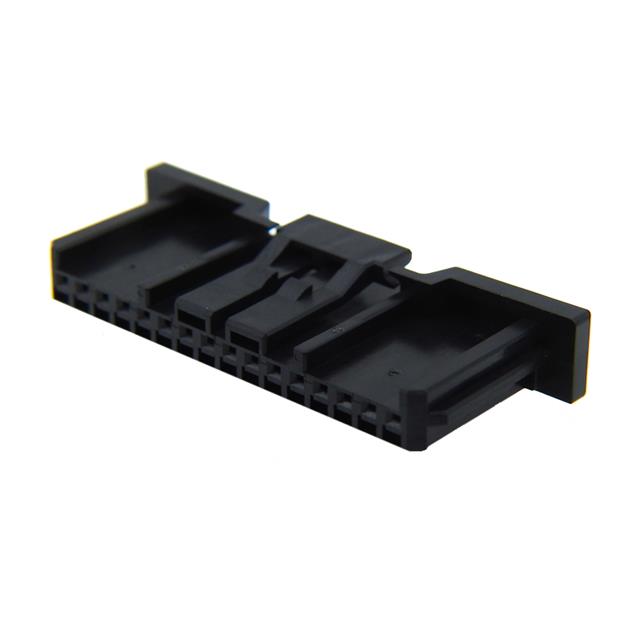

CONN RCPT HSG 16POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13103S-16Y500

Active

IRISO USA Inc.

CONN RCPT HSG 16POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-13103S-16Y500

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

IMSA-13103S Series

Part	Fastening Type	Connector Type	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Color	Note	Number of Rows	Number of Positions	Contact Termination	Contact Type	Pitch [x]	Pitch [x]	Number of Positions
IRISO USA Inc. IMSA-13103S-16B	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1	16	Crimp	Female Socket	0.079 in	2 mm
IRISO USA Inc. IMSA-13103S-16A	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1	16	Crimp	Female Socket	0.079 in	2 mm
IRISO USA Inc. IMSA-13103S-20A	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	20
IRISO USA Inc. IMSA-13103S-16Y500	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1	16	Crimp	Female Socket	0.079 in	2 mm
IRISO USA Inc. IMSA-13103S-20Y501	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	20
IRISO USA Inc. IMSA-13103S-12Y500	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	12
IRISO USA Inc. IMSA-13103S-02Y501	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	2
IRISO USA Inc. IMSA-13103S-02A	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	2
IRISO USA Inc. IMSA-13103S-02B	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	2
IRISO USA Inc. IMSA-13103S-20Y500	Locking Ramp	Receptacle	Retainer	Free Hanging (In-Line)	125 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black	Contacts Not Included	1		Crimp	Female Socket	0.079 in	2 mm	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.52
		10	$ 0.45
		25	$ 0.41
		66	$ 0.39
		132	$ 0.37
		264	$ 0.34
		462	$ 0.32

Description

General part information

IMSA-13103S Series

16 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
