AF100-265005

Active

CUI Devices

THERMALLY CONDUCTIVE GAP THERMAL PADS

Search across all available documentation for this part.

Active

CUI Devices

THERMALLY CONDUCTIVE GAP THERMAL PADS

Technical Specifications

Parameters and characteristics for this part

Part	Material	Shape	Adhesive	Outline [x]	Outline [y]	Color	Thickness	Thickness
CUI Devices AF100-202005	Non-Silicone	Square	Tacky - Both Sides	20 mm	20 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-151505	Non-Silicone	Square	Tacky - Both Sides	15 mm	15 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-707005	Non-Silicone	Square	Tacky - Both Sides	70 mm	70 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-505005	Non-Silicone	Square	Tacky - Both Sides	50 mm	50 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-265005	Non-Silicone	Rectangular	Tacky - Both Sides	26 mm	50 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-153005	Non-Silicone	Rectangular	Tacky - Both Sides	15 mm	30 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-303005	Non-Silicone	Square	Tacky - Both Sides	30 mm	30 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-204005	Non-Silicone	Rectangular	Tacky - Both Sides	20 mm	40 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-301205	Non-Silicone	Rectangular	Tacky - Both Sides	30 mm	12 mm	White	0.0197 in	0.5 mm
CUI Devices AF100-151505	Non-Silicone	Square	Tacky - Both Sides	15 mm	15 mm	White	0.0197 in	0.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Sheet	43	$ 10.47

General part information

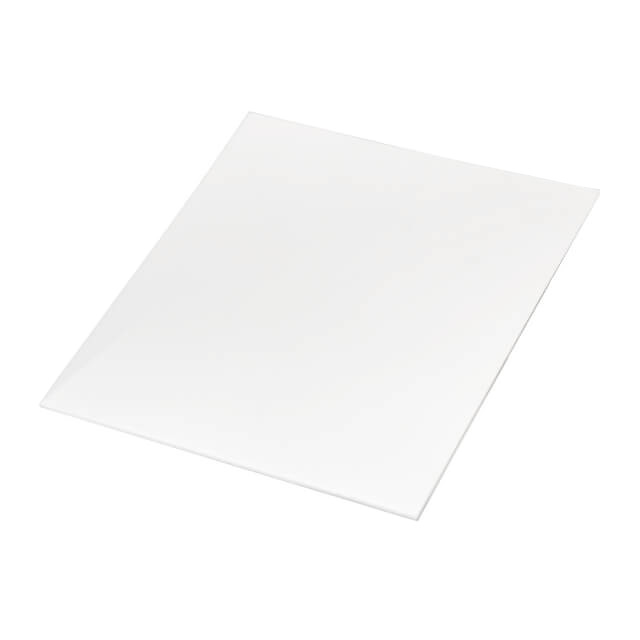

Thermal Pad White 26.00mm x 50.00mm Rectangular Tacky - Both Sides

Technical documentation and resources
