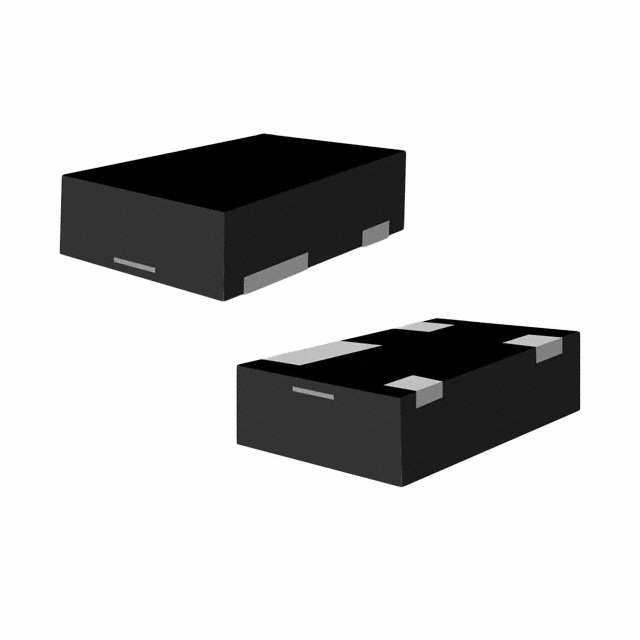

USBQ50403E3/TR7

Active

Microsemi Corporation

TVS DIODE 3.3VWM 11VC QFN143

Search across all available documentation for this part.

Active

Microsemi Corporation

TVS DIODE 3.3VWM 11VC QFN143

Technical Specifications

Parameters and characteristics for this part

Specification	USBQ50403E3/TR7

Applications	Ethernet
Capacitance @ Frequency	3 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-VDFN
Power - Peak Pulse	500 W
Power Line Protection	False
Supplier Device Package	QFN-143
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	4 V
Voltage - Clamping (Max) @ Ipp [Max]	11 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Capacitance @ Frequency	Mounting Type	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Applications	Package / Case	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Unidirectional Channels [custom]
Microsemi Corporation USBQ50403E3/TR7	3 pF	Surface Mount	5 A	500 W	Ethernet	4-VDFN	4 V	3.3 V	QFN-143	11 V		125 ¯C	-55 °C	Zener	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.59
	Digi-Reel®	1	$ 0.59
	Tape & Reel (TR)	3000	$ 0.55

General part information

11V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount QFN-143

Technical documentation and resources

No documents available
