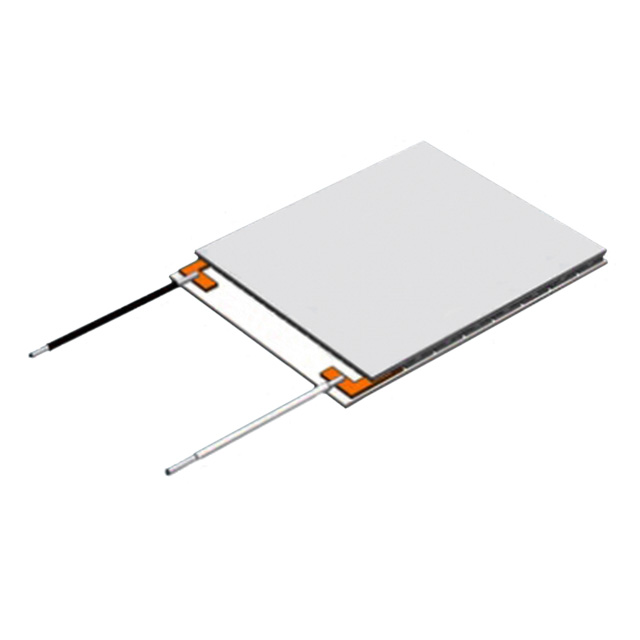

RC12-9-01LS

Active

Marlow Industries, Inc.

TEM 40X40X3.51MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 40X40X3.51MM

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Resistance	Operating Temperature	Number of Stages	Qmax @ Th	Features	Height [z]	Size / Dimension
Marlow Industries, Inc. RC12-9-01S	65 °C	14.1 V	44.7 mm	40 mm	8.4 A	1.44 Ohms	130 °C	1	78.6 W	Lead Wires Sealed	3.61 mm
Marlow Industries, Inc. RC12-9-01L	65 °C	14.1 V	44.7 mm	40 mm	8.4 A	1.44 Ohms	130 °C	1	78.6 W	Lapped Lead Wires	3.51 mm
Marlow Industries, Inc. RC12-9-01	65 °C	14.1 V	44.7 mm	40 mm	8.4 A	1.44 Ohms	130 °C	1	78.6 W	Lead Wires	3.61 mm
Marlow Industries, Inc. RC12-2.5-01LS	66 °C	14.7 V	34.01 mm	30 mm	2.5 A	4.9 Ohms	130 °C	1	23 W	Lapped Lead Wires Sealed	3.93 mm
Marlow Industries, Inc. RC12-4-01LS	66 °C	14.7 V	34.04 mm	29.97 mm	3.7 A	3.2 Ohms	130 °C	1	36 W	Lapped Lead Wires Sealed	3.33 mm
Marlow Industries, Inc. RC12-9-01LS	65 °C	14.1 V	44.7 mm	40 mm	8.4 A	1.44 Ohms	130 °C	1	78.6 W	Lapped Lead Wires Sealed	3.61 mm
Marlow Industries, Inc. RC12-4-01S	66 °C	14.7 V	34.04 mm	29.97 mm	3.7 A	3.2 Ohms	130 °C	1	36 W	Lead Wires Sealed	3.43 mm
Marlow Industries, Inc. RC12-2.5-01S	66 °C	14.7 V	34.01 mm	30 mm	2.5 A	4.9 Ohms	130 °C	1	23 W	Lead Wires Sealed	4.03 mm
Marlow Industries, Inc. RC12-8-01	66 °C	14.7 V	44.7 mm	40.13 mm	7.4 A	1.6 Ohms	130 °C	1	71 W	Lead Wires	3.63 mm	Rectangular
Marlow Industries, Inc. RC12-6-01S	66 °C	14.7 V	44.7 mm	40.13 mm	5.6 A	2.2 Ohms	130 °C	1	54 W	Lead Wires Sealed	4.01 mm	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 78.6W @ 27°C 8.4 A 130°C
