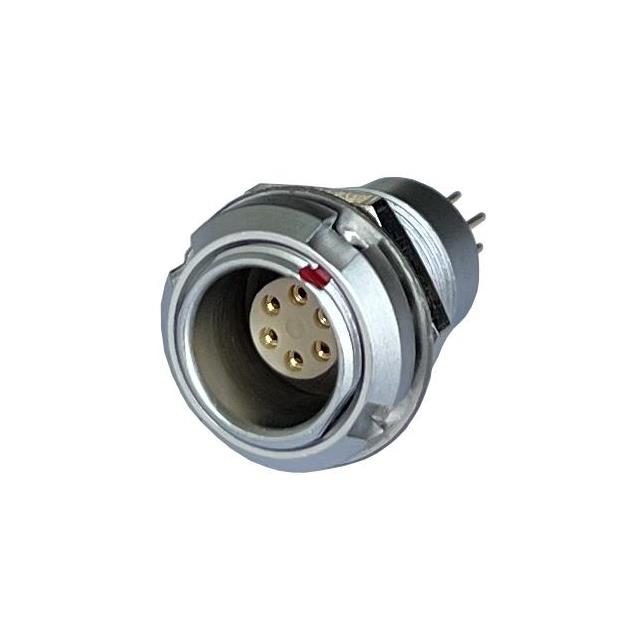

MMI-M1RSG06P

Active

Adam Tech

CONN RCPT FMALE 6POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-M1RSG06P

Active

Adam Tech

CONN RCPT FMALE 6POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-M1RSG06P

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Termination	Solder
Voltage Rating	200 V

MMI-M1RSG Series

Part	Primary Material	Contact Finish - Mating	Contact Material	Shell Finish	Orientation	Insert Material	Current Rating (Amps)	Shielding	Connector Type	Ingress Protection	Fastening Type	Shell Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Voltage Rating	Number of Positions	Mounting Type	Termination
Adam Tech MMI-M1RSG03S	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	9 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	300 VDC
Adam Tech MMI-M1RSG10S	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	2 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	200 V	10
Adam Tech MMI-M1RSG10PR	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	2 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	200 V	10	Panel Mount Right Angle Through Hole	Solder
Adam Tech MMI-M1RSG06P	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	5 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	200 V	6	Panel Mount Through Hole	Solder
Adam Tech MMI-M1RSG02PR	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	9 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	300 VDC	2	Panel Mount Right Angle Through Hole	Solder
Adam Tech MMI-M1RSG05S	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	7 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	250 VDC
Adam Tech MMI-M1RSG05P	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	7 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	250 VDC		Panel Mount Through Hole	Solder
Adam Tech MMI-M1RSG03P	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	9 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	300 VDC		Panel Mount Through Hole	Solder
Adam Tech MMI-M1RSG08PR	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	5 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	200 V	8	Panel Mount Right Angle Through Hole	Solder
Adam Tech MMI-M1RSG04PR	Metal	Gold	Brass	Chrome	G	Polyphenylene Sulfide (PPS)	8 A	Unshielded	Receptacle Female Sockets	IP50	Push-Pull	Brass	Silver	-55 °C	150 °C	Bulkhead - Rear Side Nut	250 VDC	4	Panel Mount Right Angle Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 23.34
		20	$ 16.68
		40	$ 15.49
		60	$ 14.85
		100	$ 14.09
		260	$ 12.81
		500	$ 12.03

Description

General part information

MMI-M1RSG Series

6 Position Circular Connector Receptacle, Female Sockets Solder
