MT53D512M64D4NZ-053 WT:D TR

Obsolete

Micron Technology Inc.

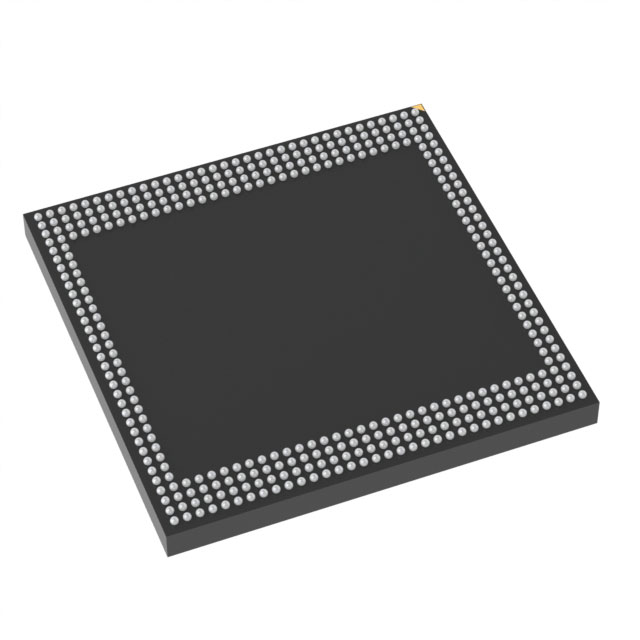

IC DRAM 32GBIT 1.866GHZ 376WFBGA

Deep-Dive with AI

Search across all available documentation for this part.

MT53D512M64D4NZ-053 WT:D TR

Obsolete

Micron Technology Inc.

IC DRAM 32GBIT 1.866GHZ 376WFBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT53D512M64D4NZ-053 WT:D TR

Clock Frequency	1866 MHz
Memory Format	DRAM
Memory Organization	512 M
Memory Size	32 Gbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Package / Case	376-WFBGA
Supplier Device Package	376-WFBGA (14x14)
Technology	SDRAM - Mobile LPDDR4
Voltage - Supply	1.1 V

MT53D512 Series

Part	Mounting Type	Memory Format	Supplier Device Package	Memory Type	Clock Frequency	Package / Case	Technology	Memory Organization	Operating Temperature [Min]	Operating Temperature [Max]	Memory Size	Voltage - Supply	Qualification	Grade
Micron Technology Inc. MT53D512M64D4HR-053 WT:D TR	Surface Mount	DRAM	366-WFBGA (12x12.7)	Volatile	1866 MHz	366-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M64D4HR-053 WT:D	Surface Mount	DRAM	366-WFBGA (12x12.7)	Volatile	1866 MHz	366-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M64D4RQ-046 WT:E TR	Surface Mount	DRAM	12.4x12.4 556-WFBGA	Volatile	2.133 GHz	556-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M64D4RQ-046 WT:E	Surface Mount	DRAM	12.4x12.4 556-WFBGA	Volatile	2.133 GHz	556-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M32D2NP-046 WT:E	Surface Mount	DRAM	200-WFBGA (10x14.5)	Volatile	2.133 GHz	200-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C		1.1 V
Micron Technology Inc. MT53D512M32D2NP-053 WT:D	Surface Mount	DRAM	200-WFBGA (10x14.5)	Volatile	1866 MHz	200-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C		1.1 V
Micron Technology Inc. MT53D512M64D4NW-062 WT ES:D	Surface Mount	DRAM	432-VFBGA (15x15)	Volatile	1.6 GHz	432-VFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M32D2DS-053 WT:D	Surface Mount	DRAM	200-WFBGA (10x14.5)	Volatile	1866 MHz	200-WFBGA	SDRAM - Mobile LPDDR4	512 M	-40 °C -30 °C	85 °C 85 °C		1.1 V
Micron Technology Inc. MT53D512M64D4NZ-053 WT:D TR	Surface Mount	DRAM	376-WFBGA (14x14)	Volatile	1866 MHz	376-WFBGA	SDRAM - Mobile LPDDR4	512 M	-30 °C	85 °C	32 Gbit	1.1 V
Micron Technology Inc. MT53D512M32D2NP-046 AIT ES:D TR	Surface Mount	DRAM	200-WFBGA (10x14.5)	Volatile	2.133 GHz	200-WFBGA	SDRAM - Mobile LPDDR4	512 M	-40 °C	95 °C		1.1 V	AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MT53D512 Series

SDRAM - Mobile LPDDR4 Memory IC 32Gbit 1.866 GHz 376-WFBGA (14x14)

Documents

Technical documentation and resources

No documents available
